Quick Start On AWS Marketplace

Installation Requirements

This guide outlines the requirements and preparation steps needed to deploy the Whaleal Platform (WAP) and its MongoDB agent on the AWS Marketplace.

By following this guide, you can prepare for a successful deployment and avoid common setup issues.

Whaleal Platform

Hardware Requirements

Minimum Requirements: 8 cores, 16GB of RAM, 500GB disk space.

Node Number	CPU	Memory	Disk
50	8+	16GB+	500GB+additional storage for logs
200	16+	32GB+	500GB+additional storage for logs
200+	Please contact the Whaleal Team for specific requirements.

Operating System Requirements

Operating System	Version	Architecture
Amazon	Linux	2023 x86_64

Software Requirements

Java Environment Requirements

JAVA	Version
open-jdk	17.0

Network Requirements

TCP

Ensure that all Whaleal Platform Application services can communicate effectively over TCP/IP.

• Whaleal Platform Application Database
• Whaleal Platform Application Agent Monitor MongoDB

Hosts

To ensure plug-and-play functionality, the Whaleal Platform Server requires the external IP to be open.

Port

The Whaleal Platform Application must meet the following basic requirements:

• Users and the Whaleal Platform Application Agent must be able to access via HTTP/HTTPS requests.
• The Whaleal Platform Application must be able to access the Whaleal Platform Application Database.
• All Whaleal Platform Applications and Whaleal Platform Application Agents must be able to access the monitored and managed MongoDB services.
• The Whaleal Platform Application must be able to send information to users via email, DingTalk, Feishu, Webhook.

The Whaleal Platform Application must open the following ports:

Service	Default Port	Transport	Direction	illustrate
Whaleal Platform	80	TCP	Inbound	Web Access

If a custom port is needed, please open the port.

Port at host

Service	Default Port	Transport	Direction
ssh	22	TCP	Inbound

MongoDB - Agent

Hardware Requirements

Minimum: 2 cores, 4GB RAM

Operating System

Operating System	Version	Architecture
Amazon	2023	x86_64

Software Requirements

Java Environment Requirements

JAVA	Version
open-jdk	17.0

Network Requirements

Port

The Whaleal Platform Application Agent must meet the following basic requirements:

• Users and the Whaleal Platform Application must be able to access the server and MongoDB.
• Therefore, the Whaleal Platform Application must open the following ports:

Service	Default Port	Transport	Direction
MongoDB	27017	TCP	Inbound、Outbound

​ If a custom port is needed, please open the custom port.

Port at host

The Whaleal Platform Application Agent can complete most operations, but some processes require administrator access to the Whaleal Platform Application host. The following ports must be open:

Service	Default Port	Transport	Direction
ssh	22	TCP	Inbound

Installation Deployment

Subscribe to Whaleal Platform Server

Subscribe to the service

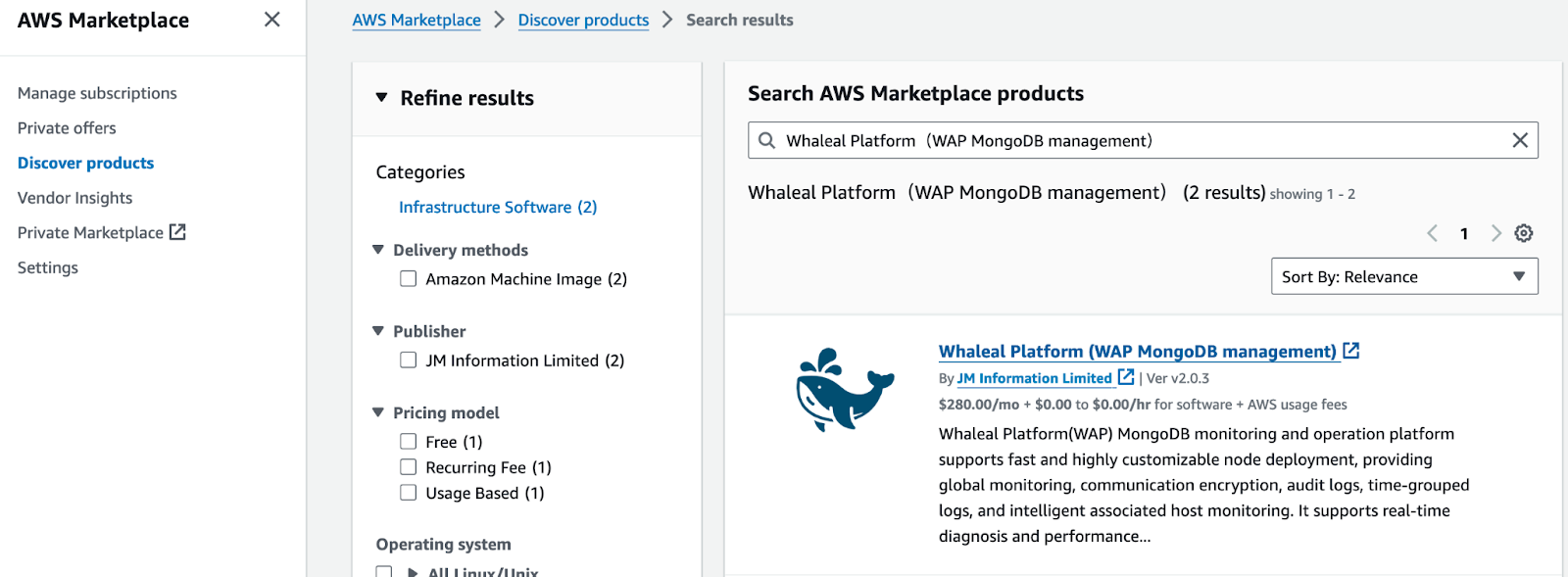

Search for Whaleal Platform in the AWS Marketplace

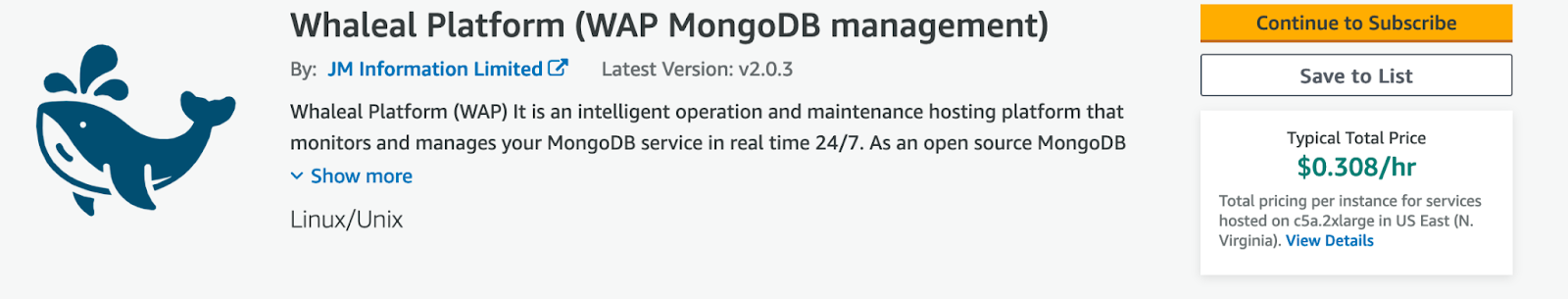

Click "Continue to Subscribe" to subscribe to the service.

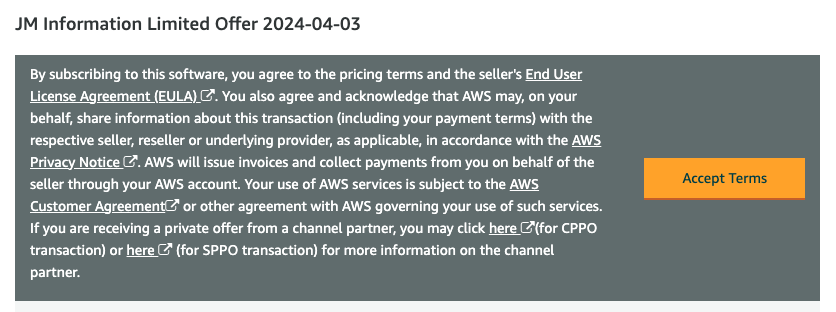

Click "Accept Terms" to agree to the service terms.

Click "Continue to Configuration" to proceed with the setup.

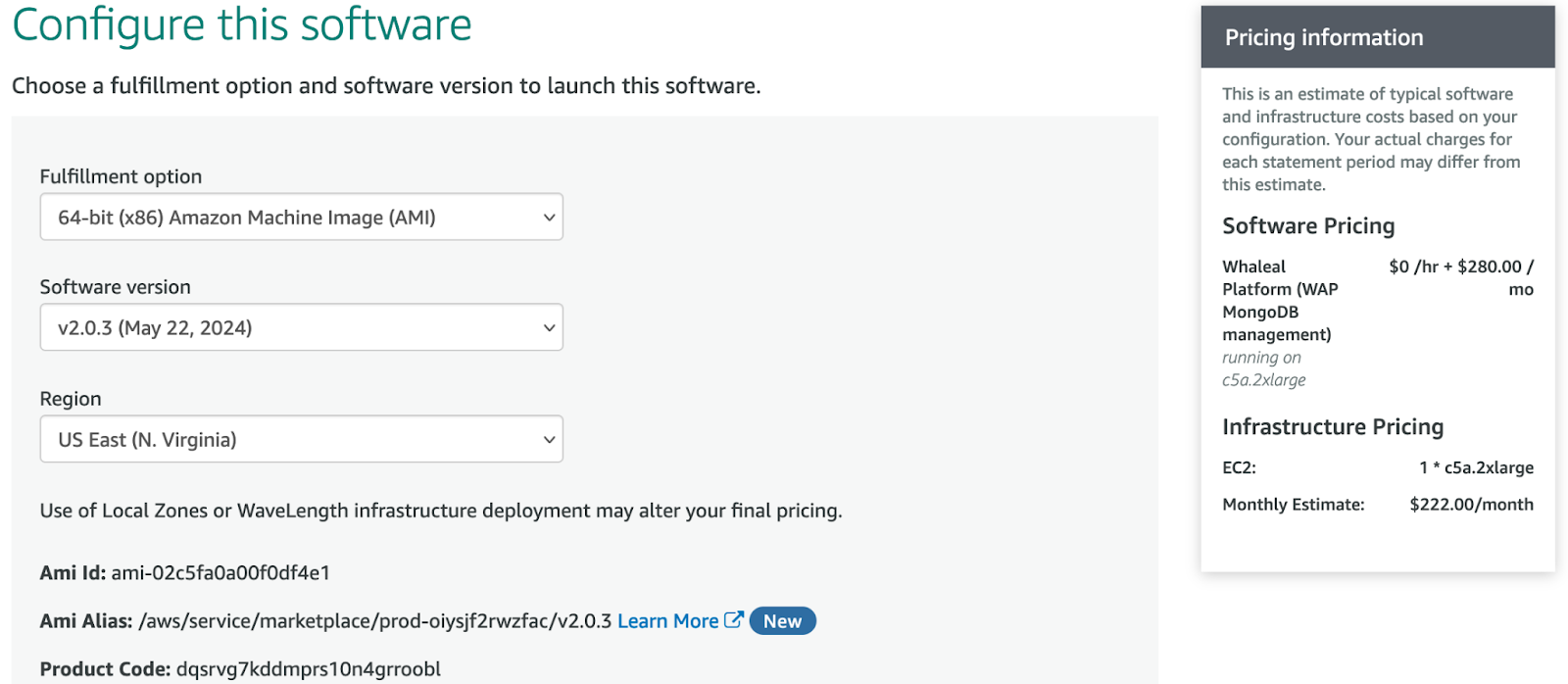

Configure instance, version, region, and pricing-related information.

Note: When selecting a version, please choose the latest version.

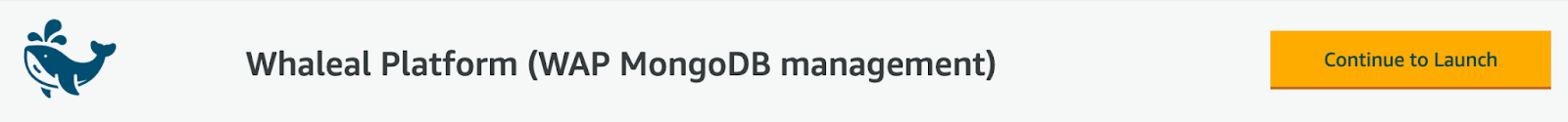

Click "Continue to Launch" to proceed to the next step.

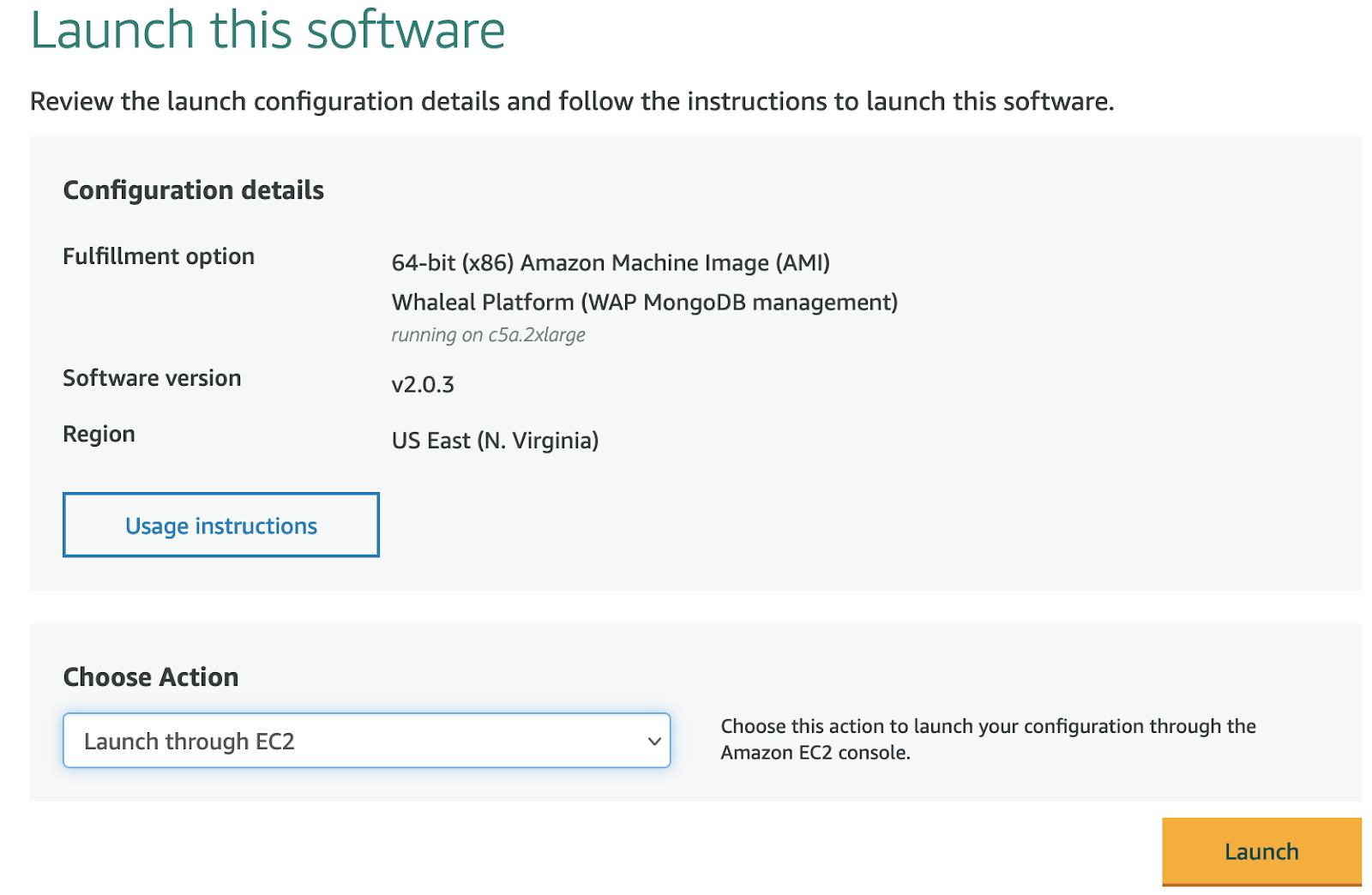

Select "Launch through EC2" and then click "Launch" to deploy the instance in EC2.

Instance deployment

Configure instance name

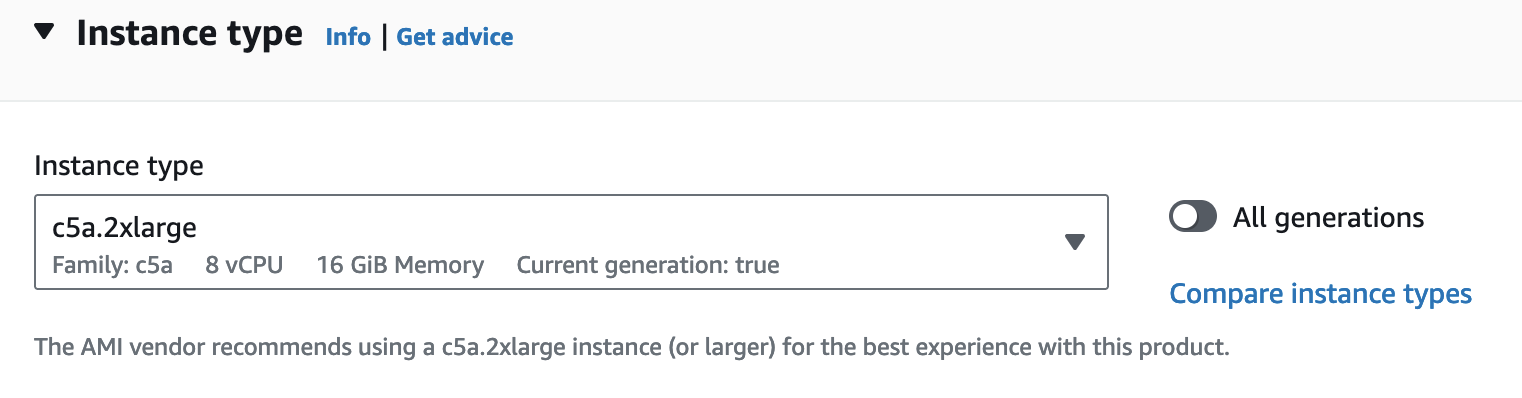

Configure instance type

Minimum instance type: 8 cores, 16GB RAM, 500GB

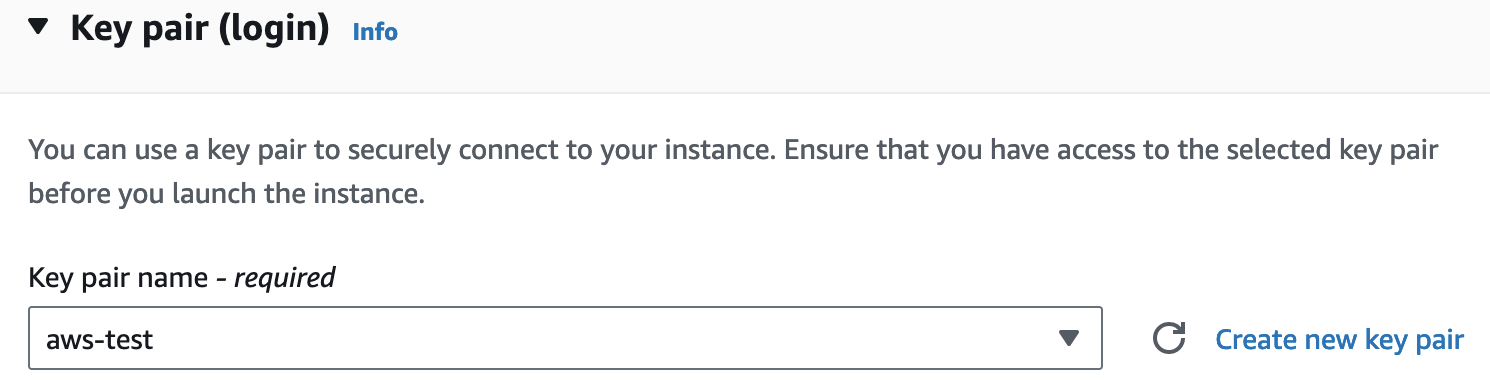

Configure key pair

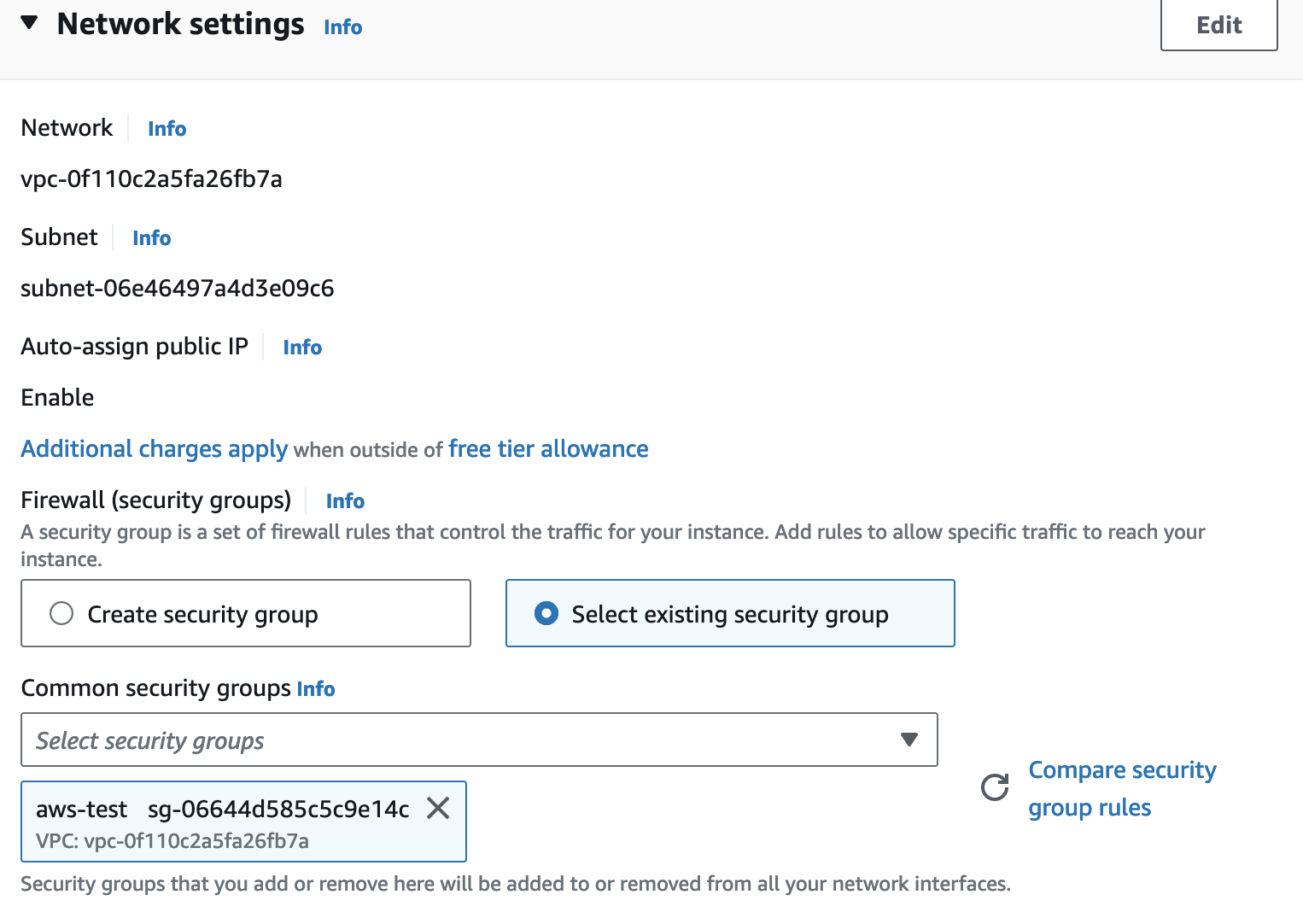

Configure network and ports

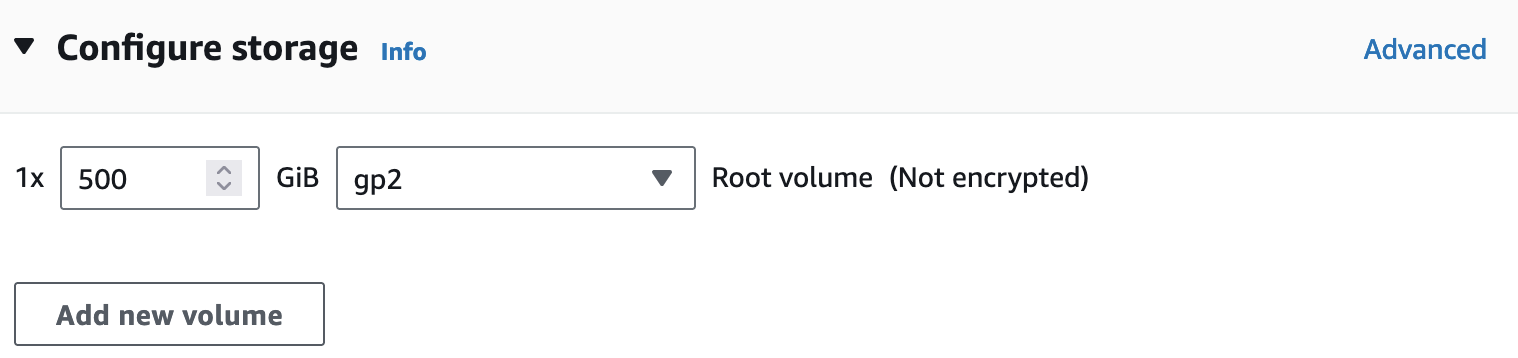

Add storage volume

Minimum requirement: 500GB

Then create the machine

Whaleal Platform Server Deployment

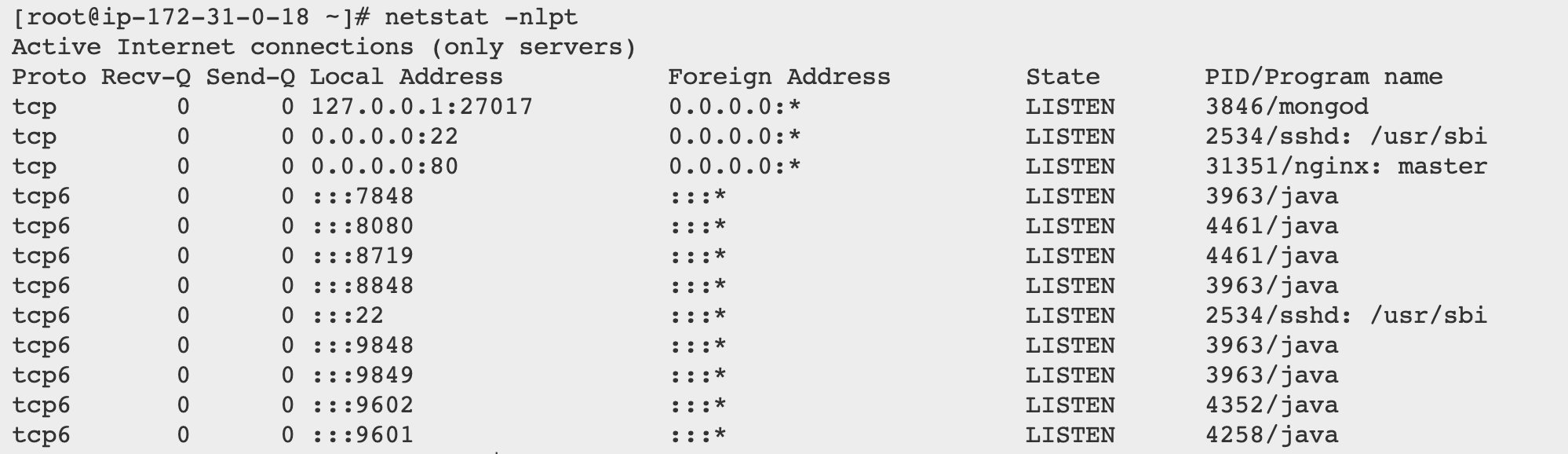

Confirm that the boot services are starting on the Whaleal Platform servernginx service

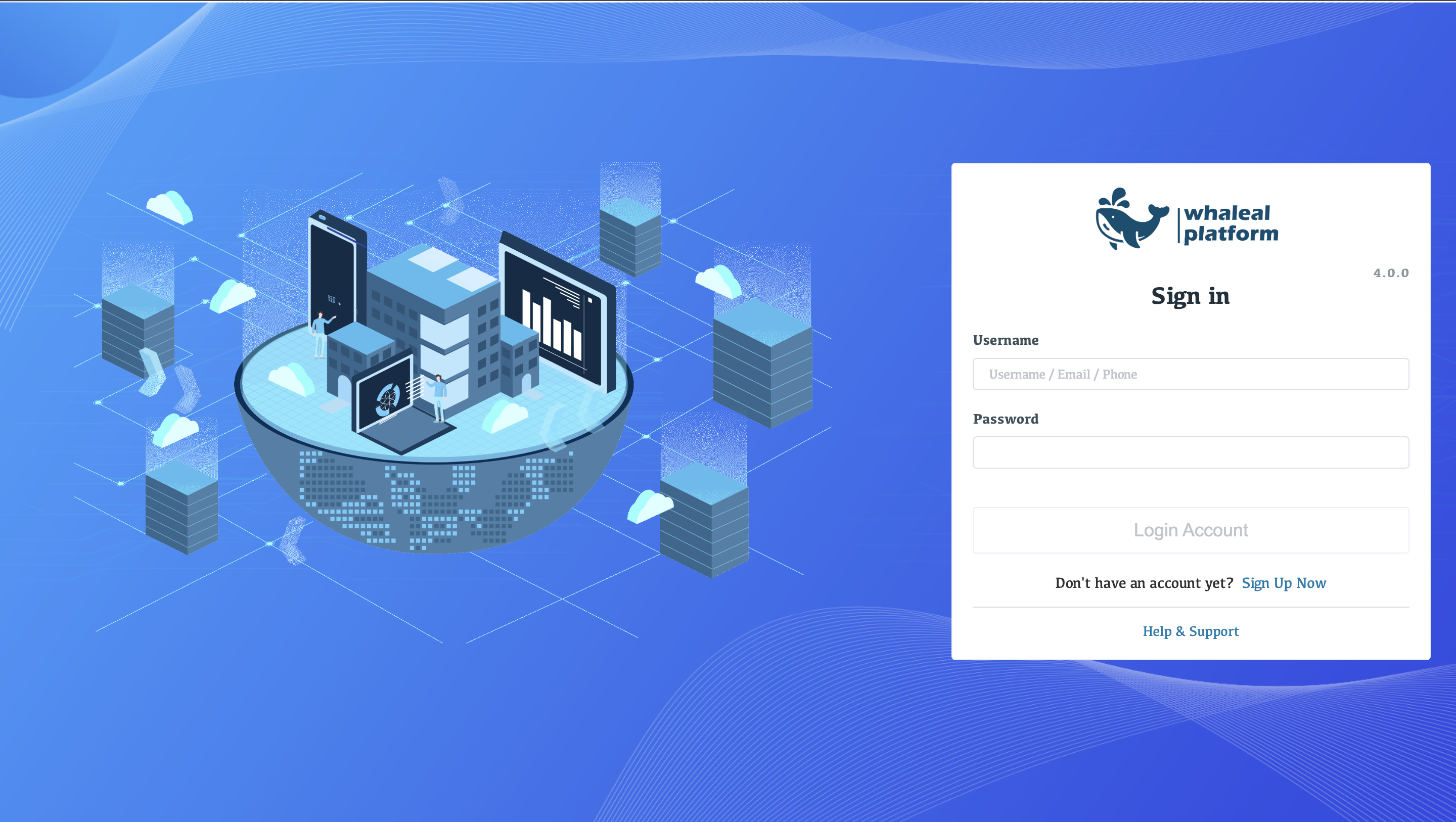

Enter the Whaleal Platform URL in your browser,Public IP address of this machine

The initial password is admin password

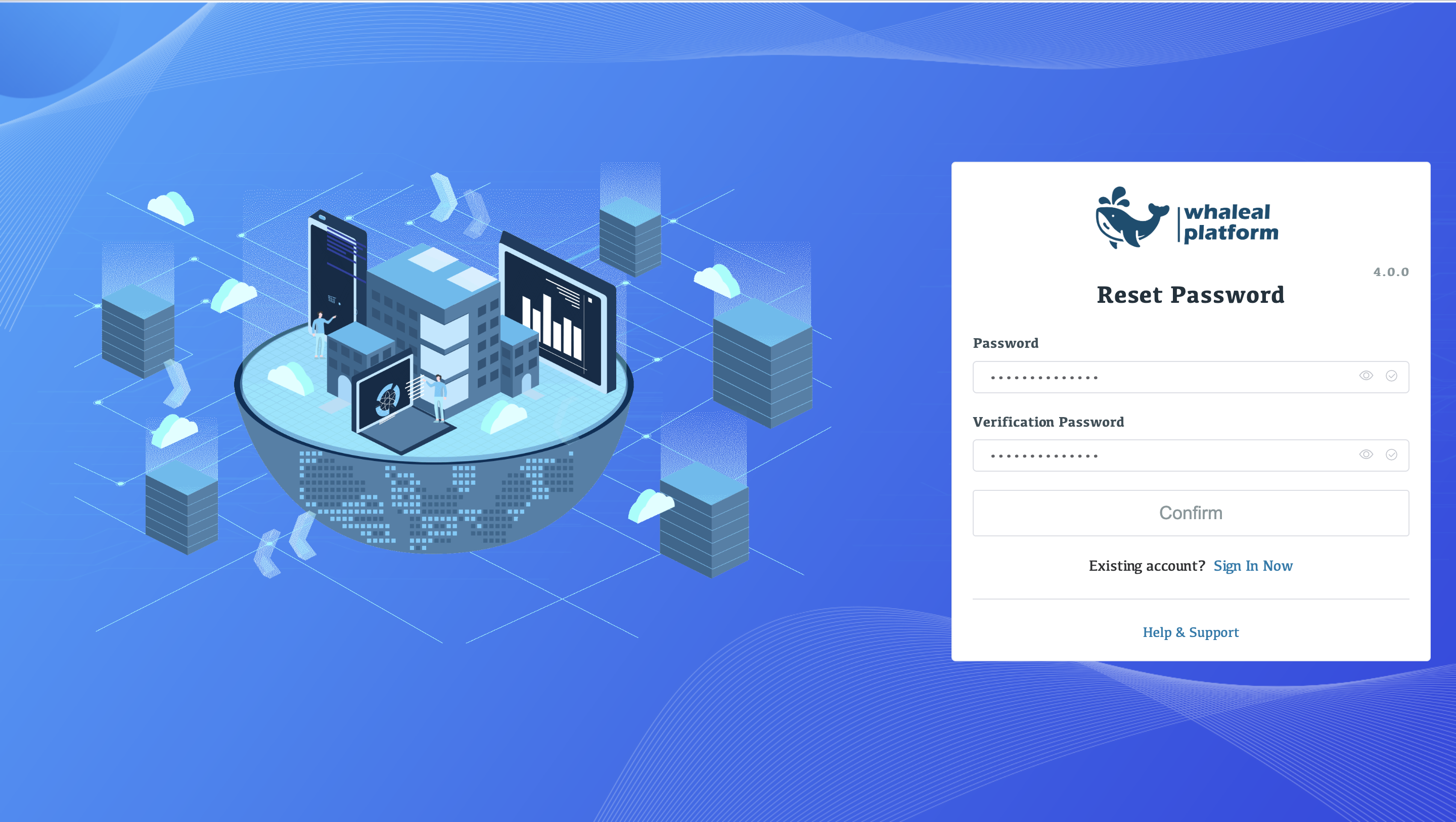

Reset password on first login

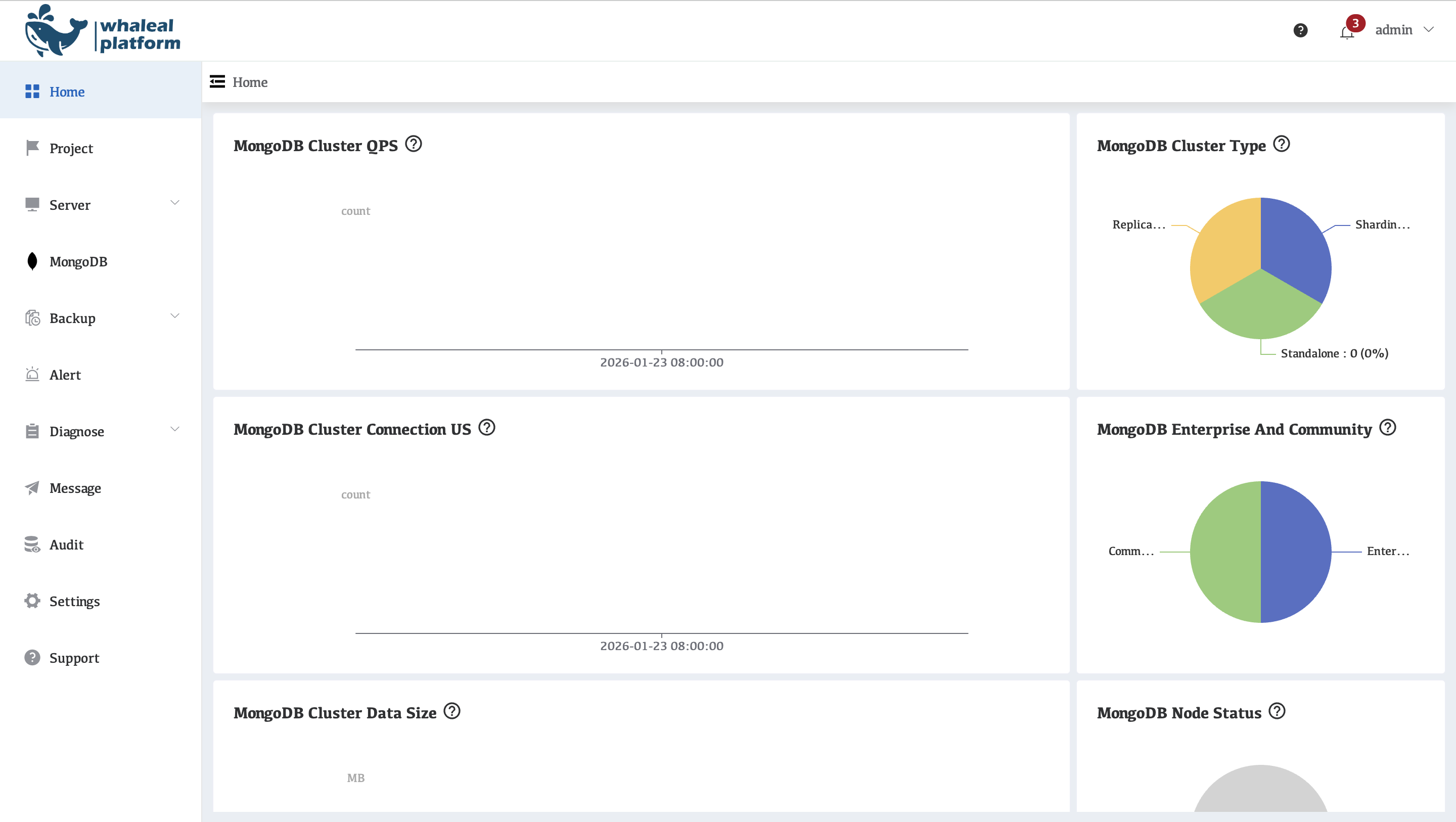

Display the home page upon successful login

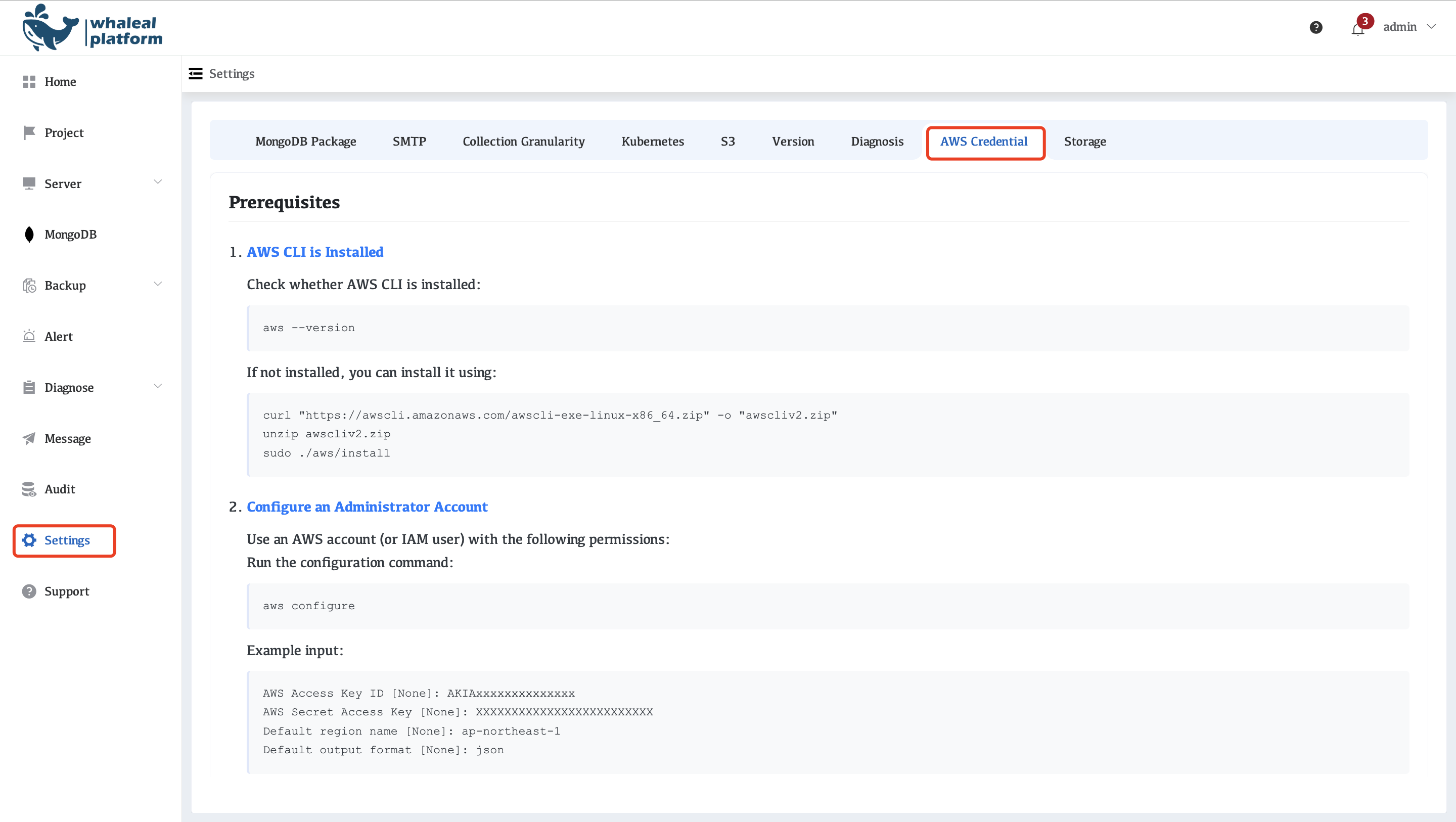

Link your AWS account to WAP

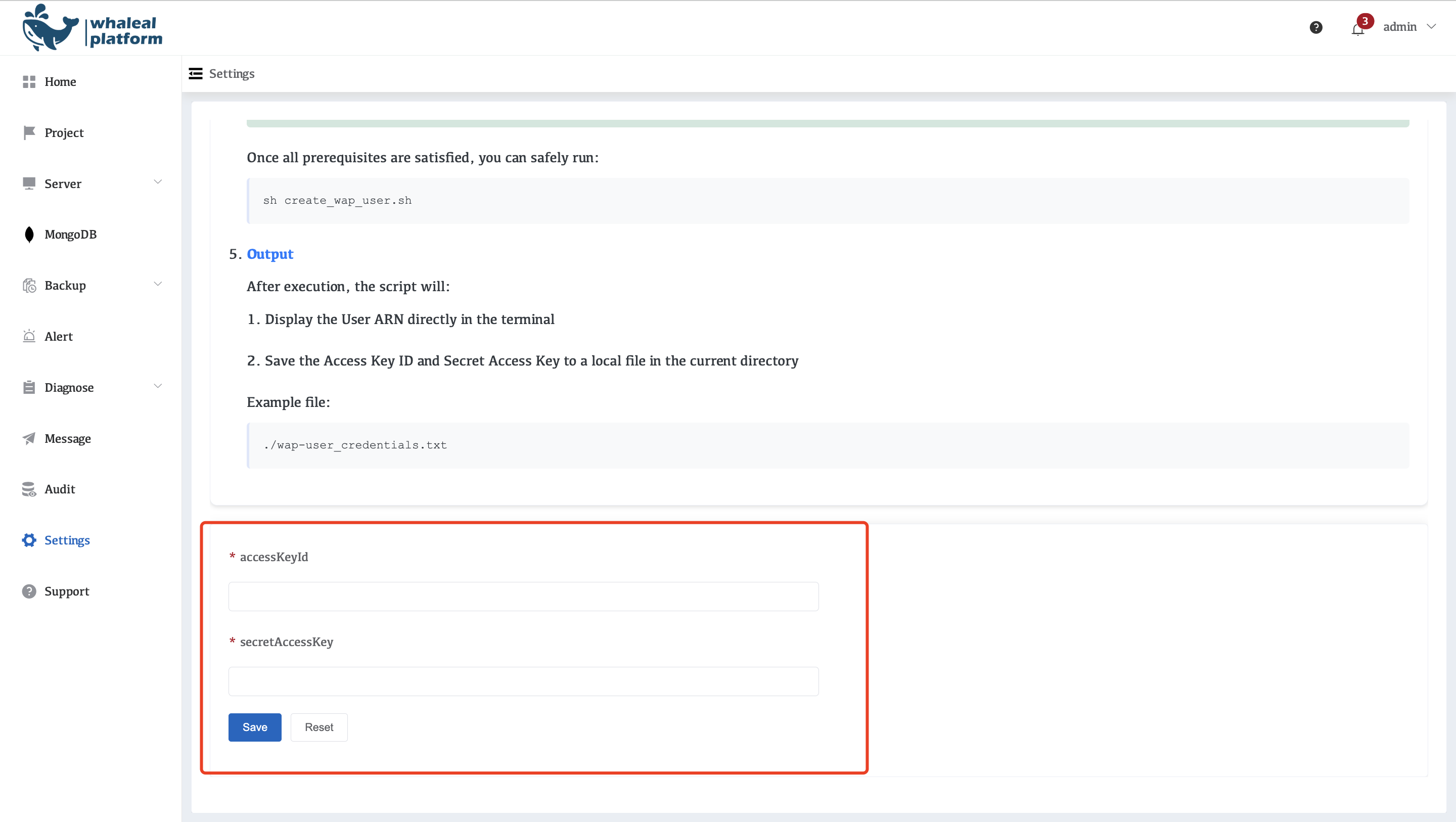

Follow the steps to create an AWS user, copy the key information into the application, and click save.

Deploy single-instance replica set

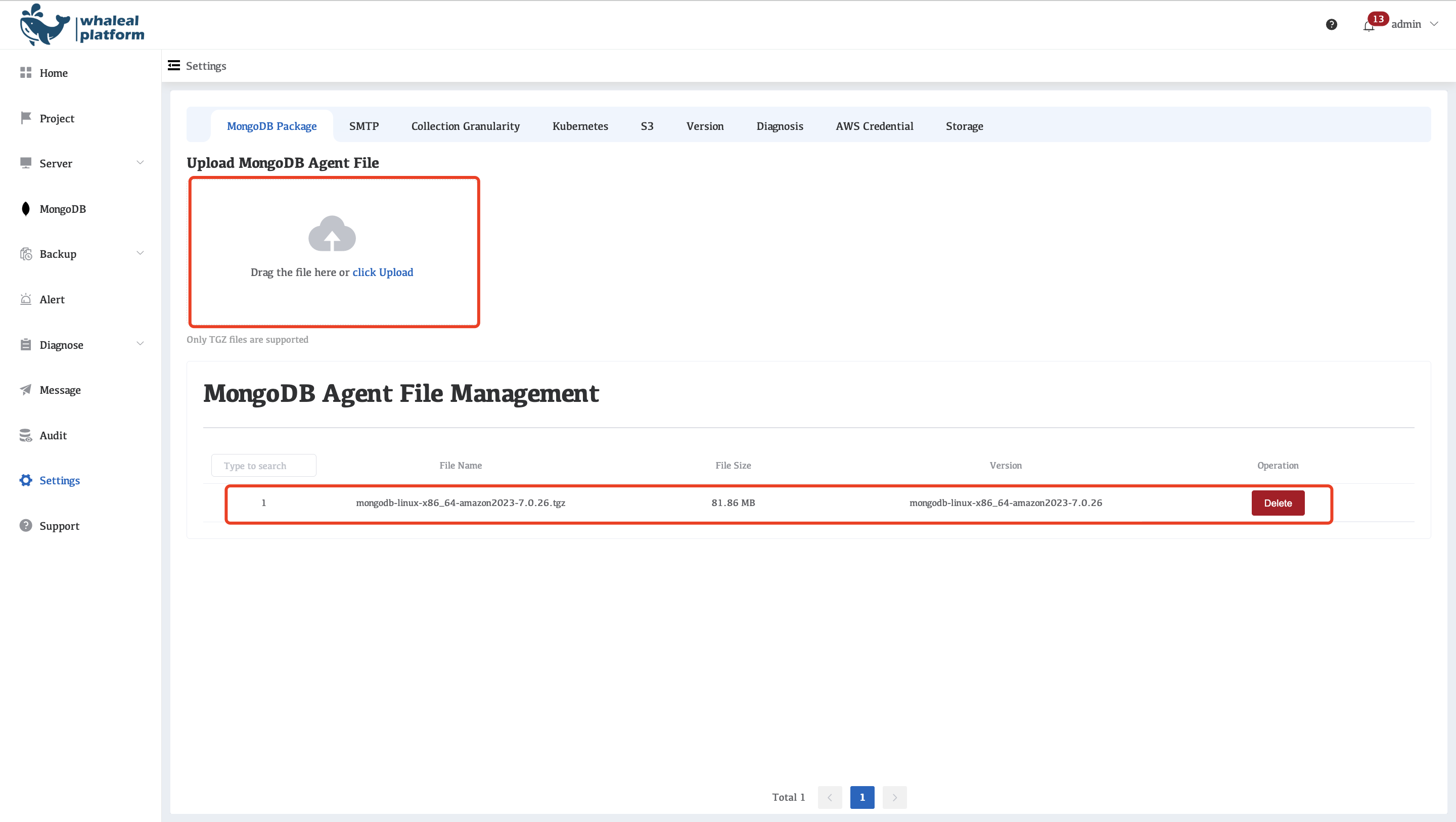

Uploading a MongoDB package requires manually downloading the binary installer from the MongoDB website and clicking click Upload. Note that currently only Amazon 2023 systems are supported.

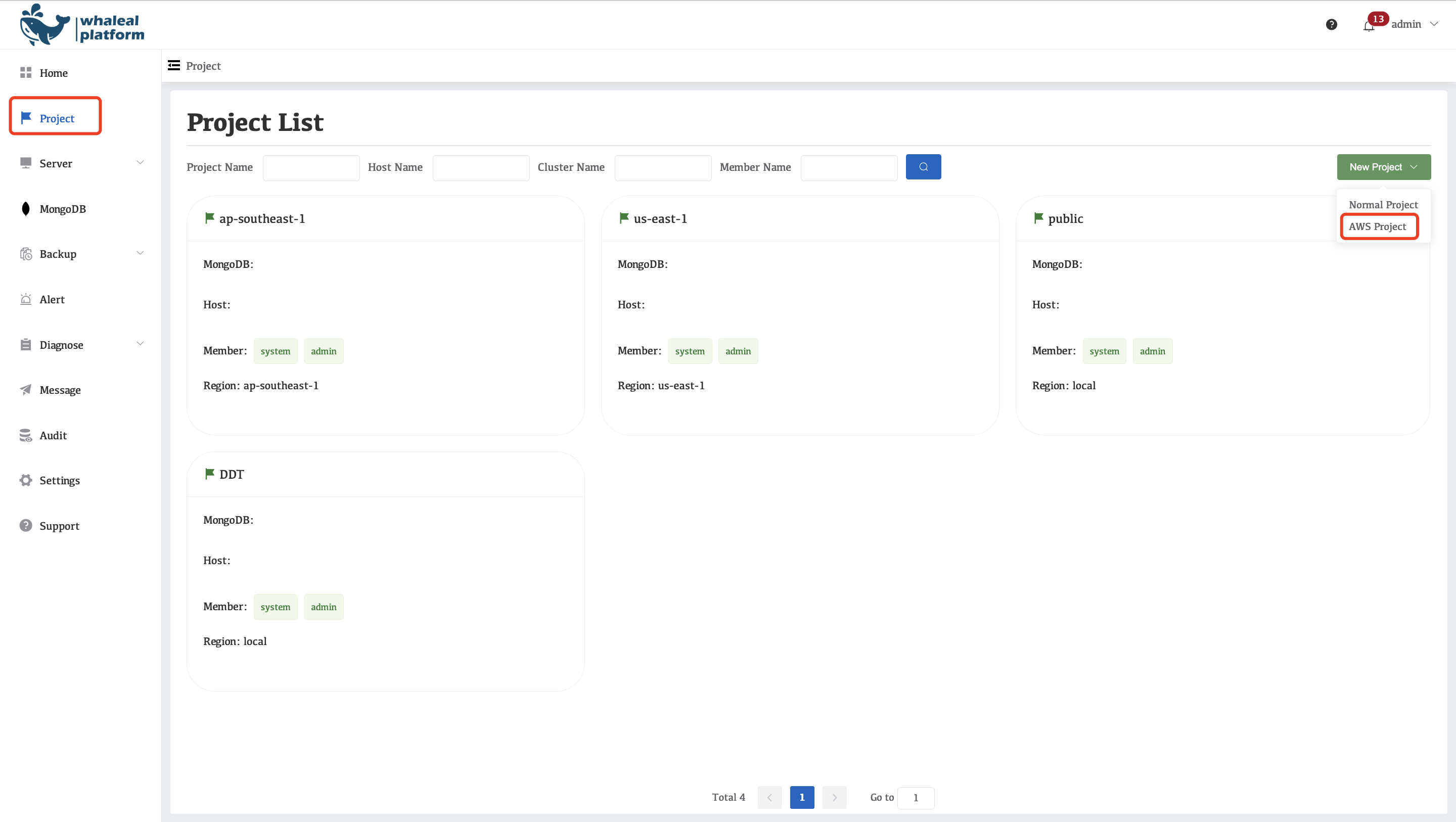

Create Project

Used to create a new project in WAP to manage and monitor a group of MongoDB instances or hosts, and to assign project members and related resources.

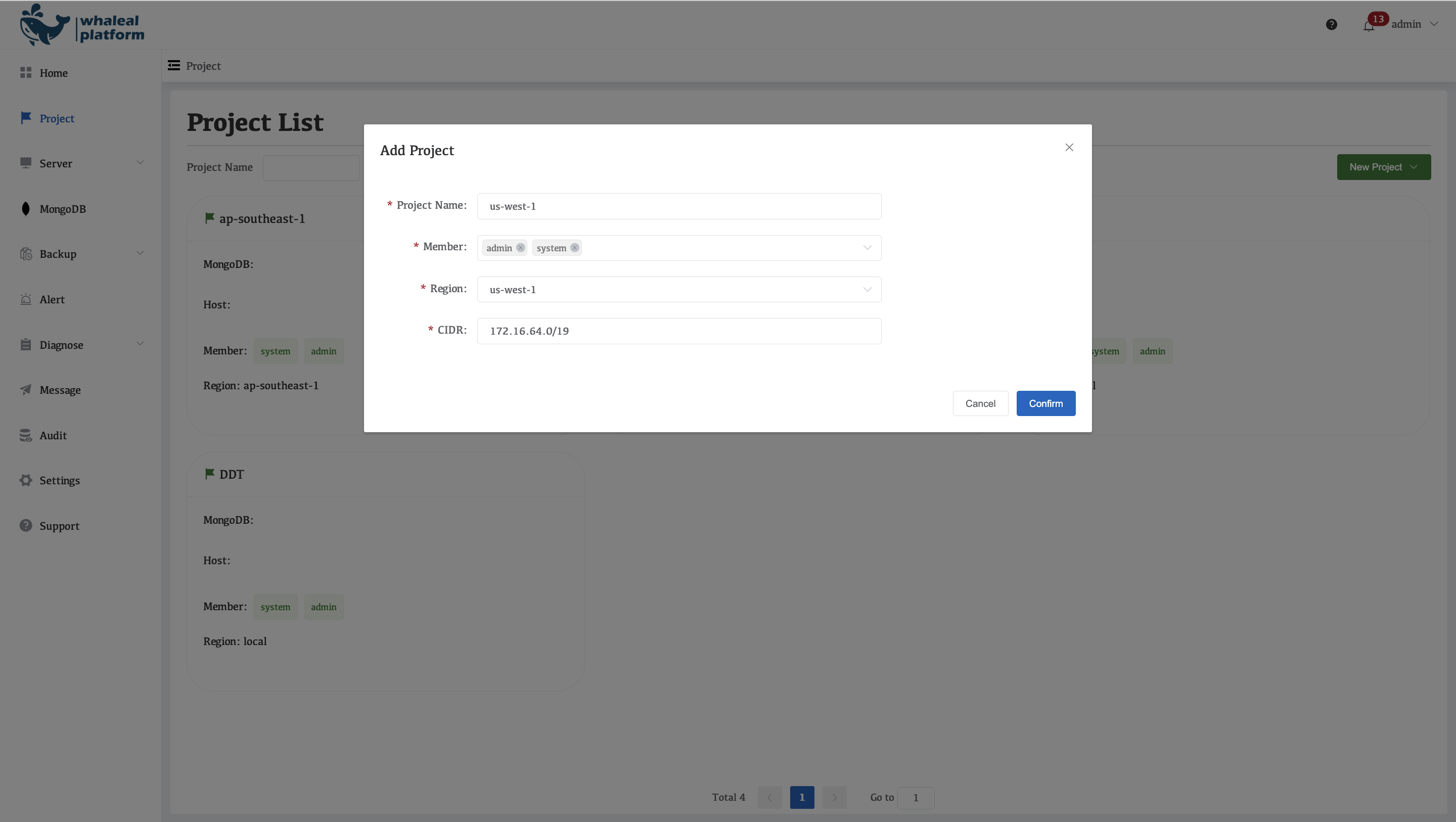

Select the region and CIDR where you want to deploy MongoDB, then click Create.

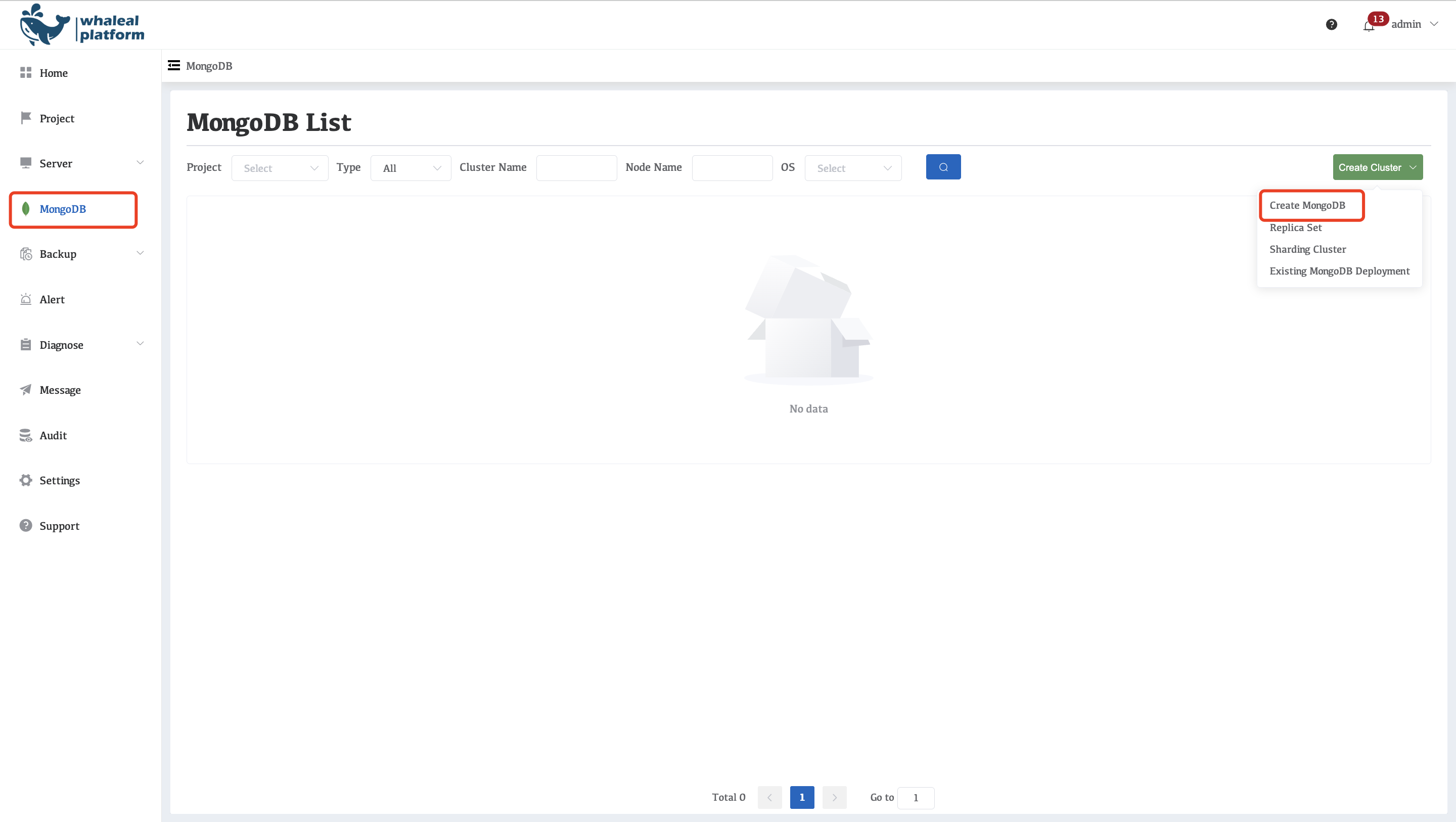

Deploying MongoDB

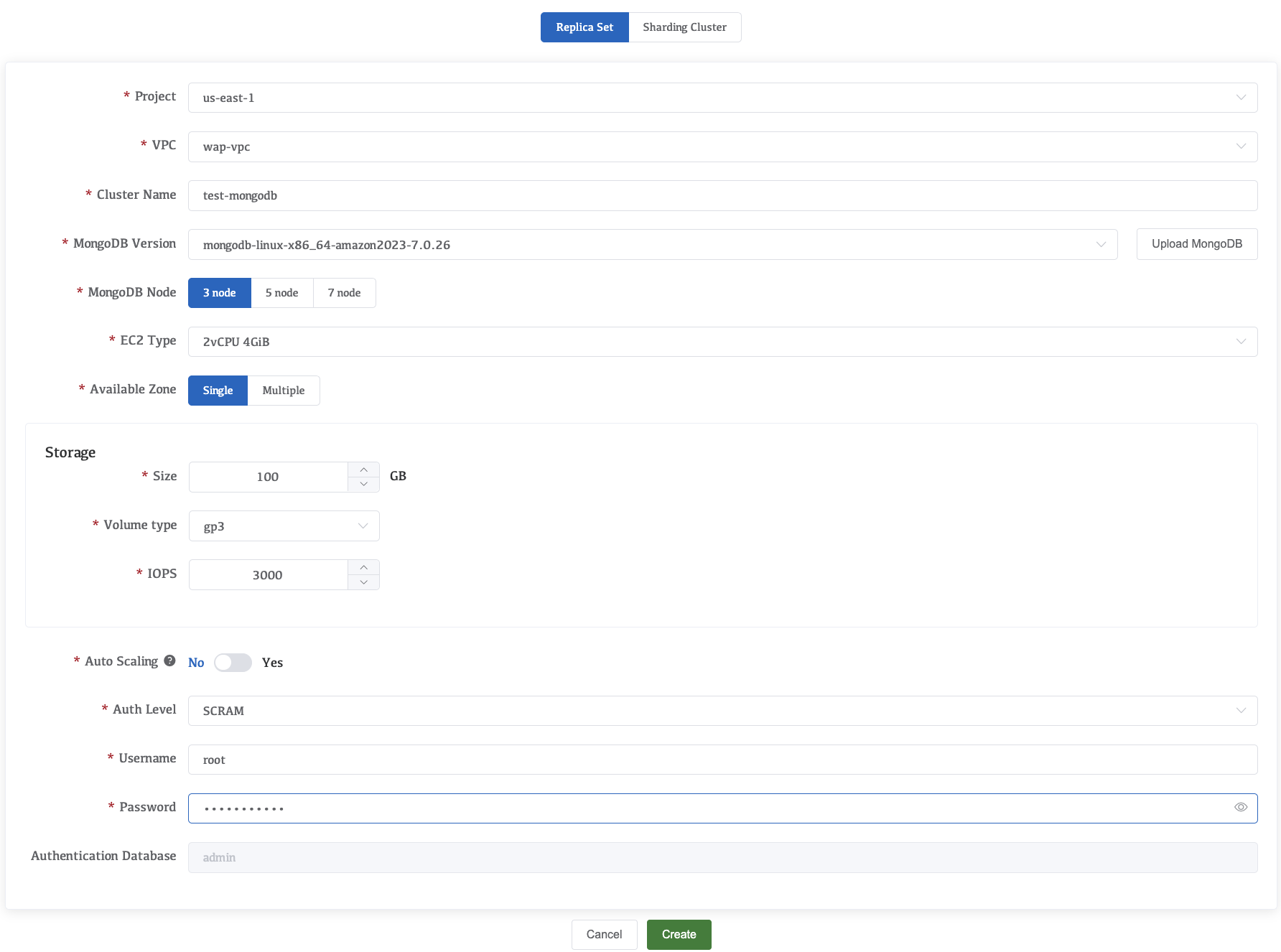

Select your MongoDB configuration

Parameter description

Configuration Name	Description
Project	Select the project you created
VPC	Select VPC; wap-vpc is automatically created by the WAP platform.
Cluster Name	Enter your MongoDB cluster name
MongoDB Version	To select the MongoDB version, you need to add the downloaded installation package from the previous WAP session.
MongoDB Node	Select the number of nodes in the cluster
EC2 Type	Select the instance type for the cluster.
Available Zone	Instance availability zone selection: Note that a cluster can only have 3 availability zones. If the number of nodes exceeds 3, there will still be duplicate nodes assigned to the same availability zone.
Storage	Cluster storage configuration, select Size, Volume type, IOPS, etc.
Auto Scaling	When your cluster resources reach capacity limits, AutoScale will automatically scale up the cluster instance type and increase instance storage capacity. This may result in additional costs.
Auth Level	Select the MongoDB authentication authorization level
Username	MongoDB cluster username
Password	MongoDB cluster password
Authentication Database	The default authentication database for MongoDB clusters is admin and cannot be changed.

After configuration, click Create.

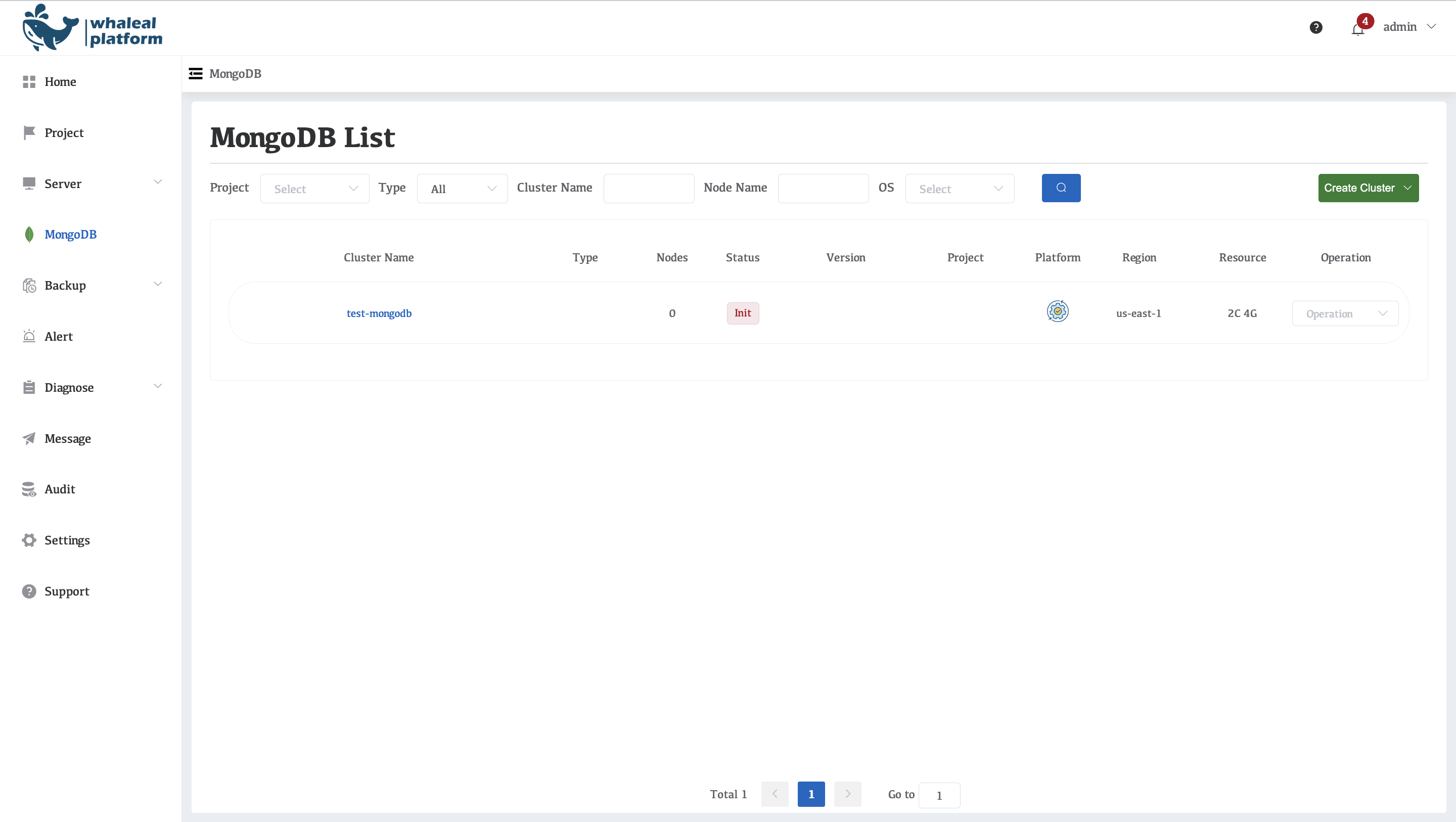

View the current progress through the logs, click on the cluster name.

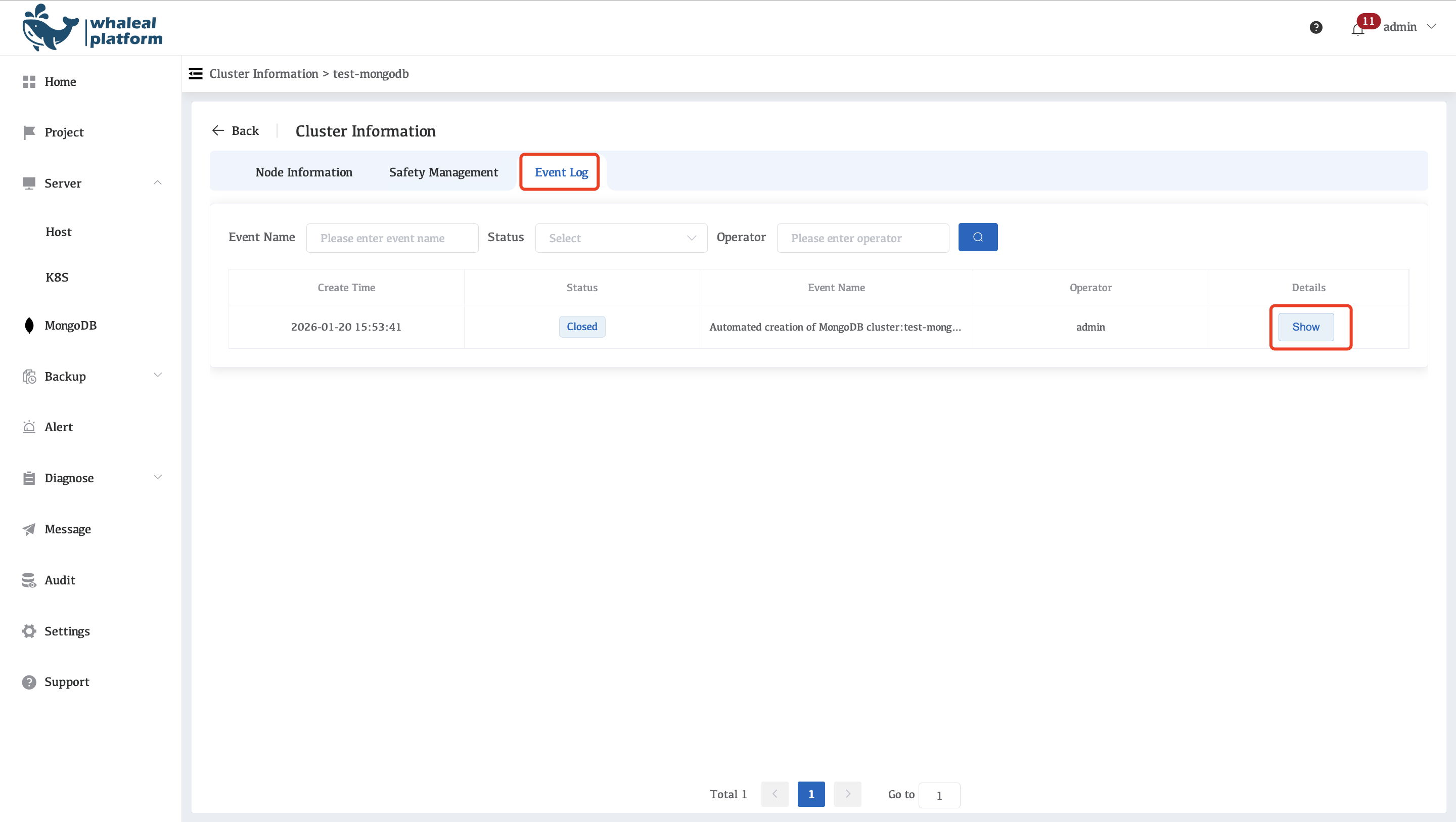

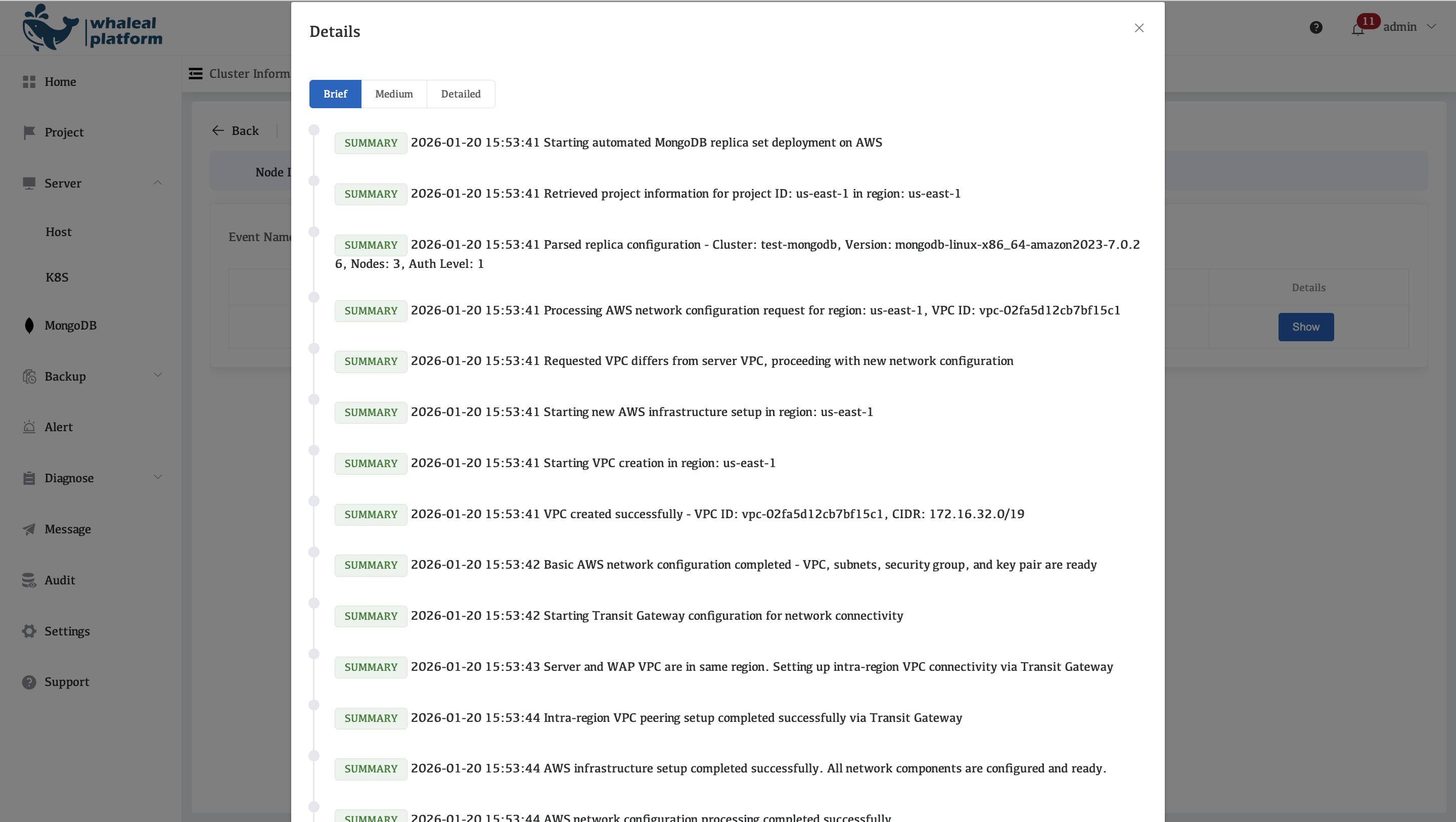

View log information

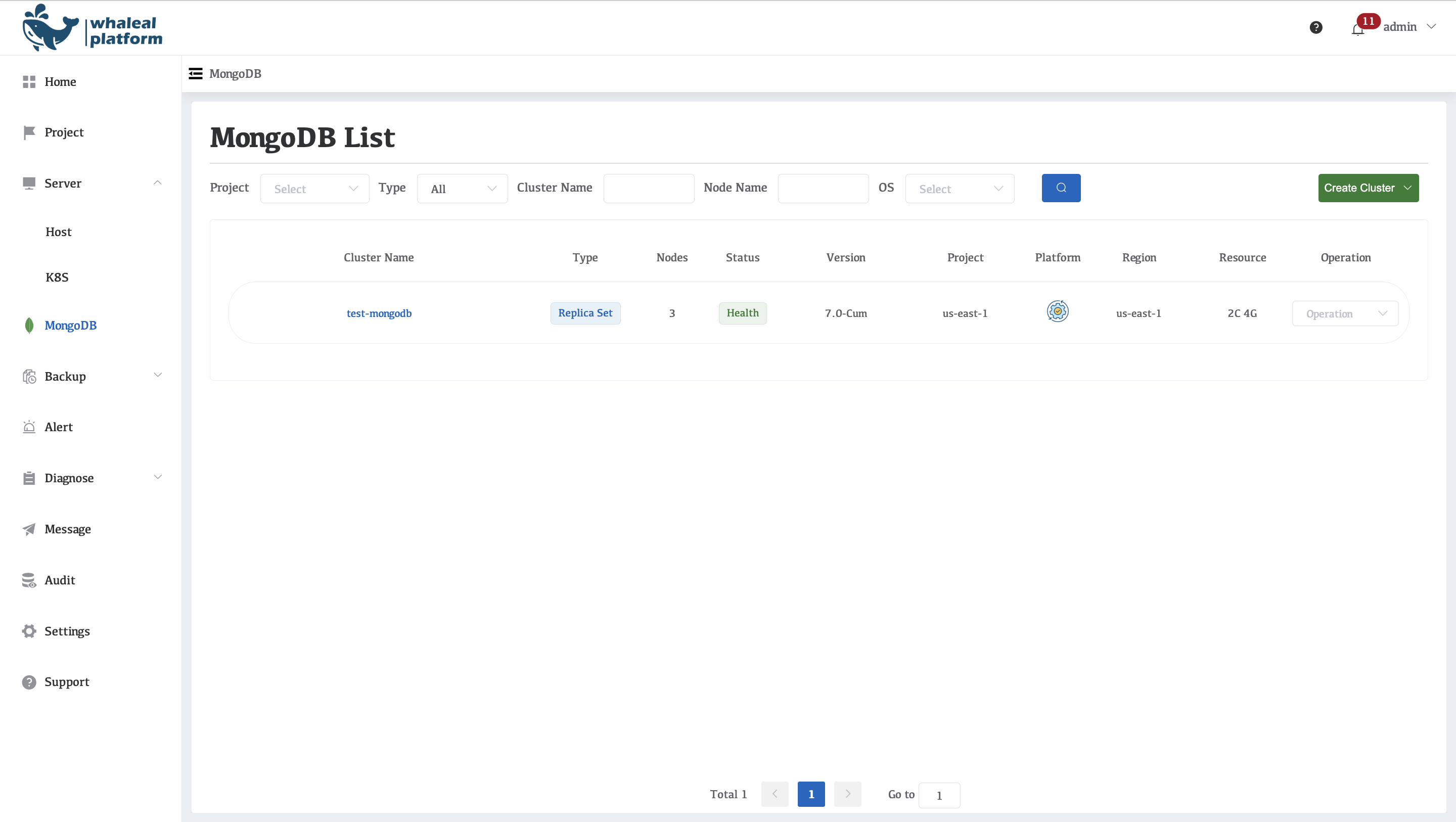

Waiting for the MongoDB cluster to complete creation; the status should be "Healthy".

Click the cluster name to view the node status.
