Auto Scaling Policy Overview

Auto Scaling Policy Overview

I. Auto Scaling Switch

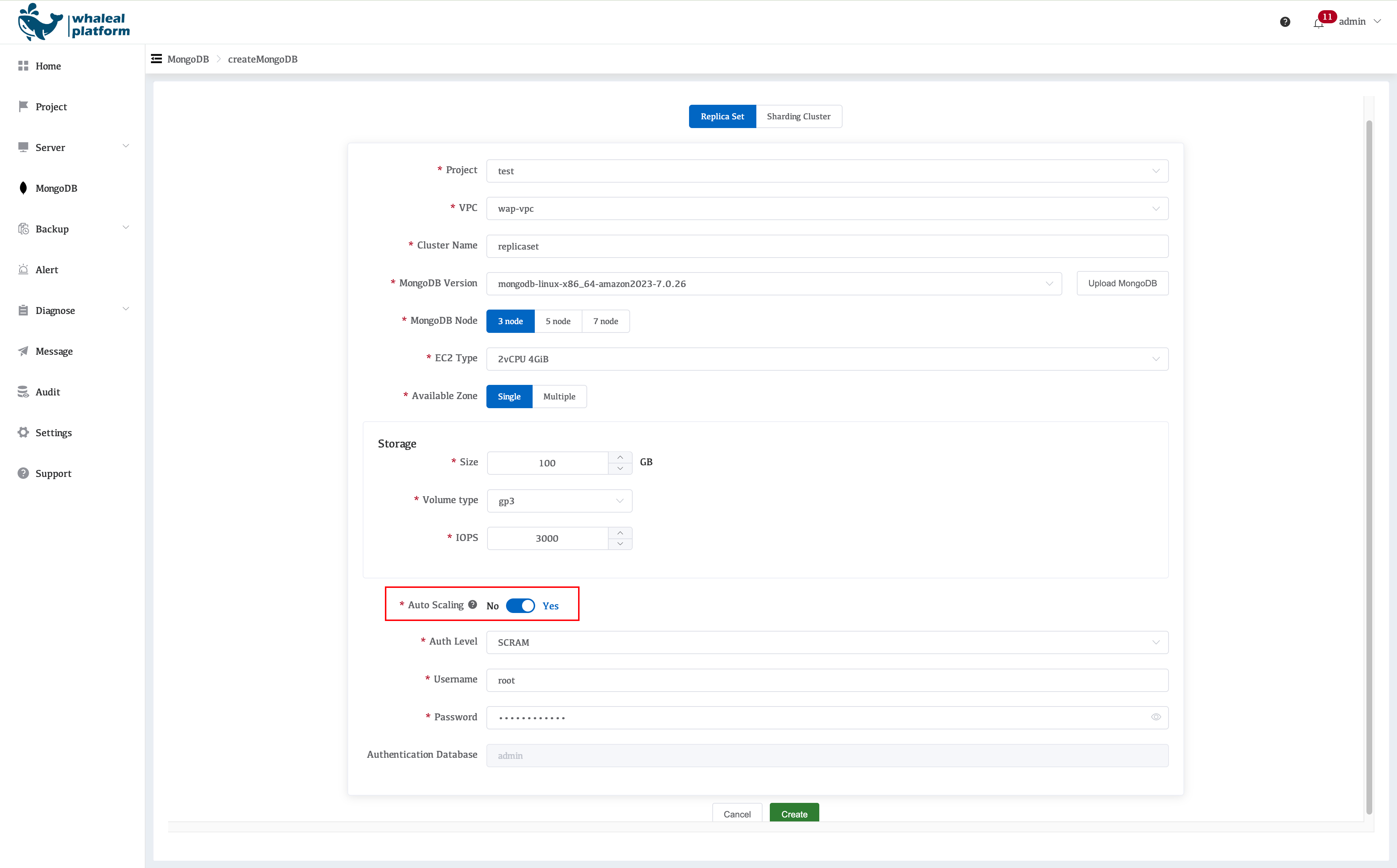

When creating a MongoDB cluster, WAP provides an option to Enable Auto Scaling.

  • Default value: Disabled (auto scaling is turned off)

1770173012647

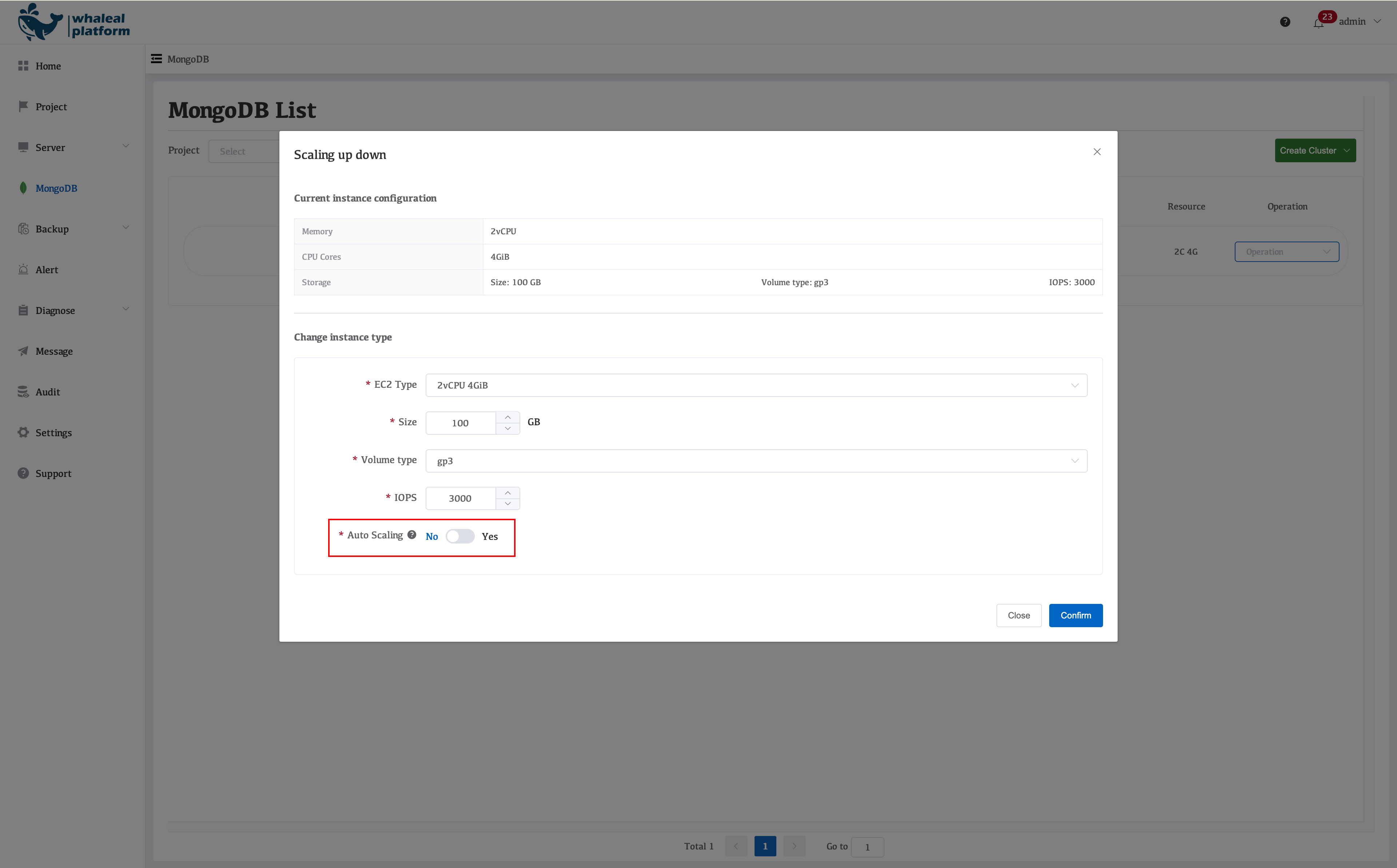

When modifying cluster configuration, this parameter can be adjusted dynamically:

  • Auto scaling can be enabled or disabled
  • Changes take effect immediately

1770173026094

Notes

  • MongoDB Replica Sets: Auto scaling is supported
  • MongoDB Sharded Clusters: Auto scaling is not recommended

Sharded clusters involve shard count, data distribution, and load balancing. Automatic instance upgrades may lead to resource imbalance or workload fluctuations.

👉 When auto scaling is enabled for a sharded cluster, the platform will display a clear risk warning.

II. Auto Scaling Trigger Conditions (EC2 Instances)

Auto scaling decisions are based on a combined evaluation of CPU, memory, and storage metrics. All metrics must meet their sustained conditions before scaling is triggered.

1. CPU Utilization

  • Trigger Threshold

    CPU utilization ≥ 85%

  • Sustained Condition

    Within 1 hour,

    trigger points exceed 80%

2. Memory Utilization (MongoDB-Specific)

  • Evaluation Basis

    MongoDB WiredTiger memory utilization

  • Trigger Threshold

    WiredTiger memory usage > 90%

  • Sustained Condition

    Within 1 hour, trigger points exceed 80%

Explanation The platform focuses on MongoDB’s actual usable working memory, rather than raw OS-level memory usage.

3. Storage Utilization

  • Trigger Threshold

    Disk usage > 85%

  • Post-Scaling Constraint

    After expansion, remaining disk space ≥ 40%

  • Sustained Condition

    Within 1 hour,

    trigger points exceed 80%

III. Scenarios Where Auto Scaling Is Suppressed

Even if resource metrics exceed thresholds, auto scaling will not be triggered in the following cases, to prevent ineffective or incorrect scaling.

1. High CPU Load Caused by Inefficient Queries

  • Detection Criteria

    • Large number of full collection scans or sort operations
    • SCAN_AND_ORDER count > 10,000

  • Sustained Condition

    Within 1 hour,

    trigger points exceed 80%

Explanation This scenario is typically caused by missing indexes or inefficient queries. Scaling up resources cannot fundamentally resolve the issue. Query and index optimization should be prioritized.

IV. Auto Scaling Upgrade Strategy (EC2 Instance Types)

When scaling conditions are met and no exclusion rules are triggered, WAP automatically upgrades to the next EC2 instance size according to the following rules:

Current Spec Upgraded Spec
2C / 4GB 4C / 8GB
4C / 8GB 8C / 16GB
8C / 16GB 16C / 32GB
16C / 32GB 32C / 64GB
32C / 64GB 64C / 128GB
64C / 128GB 128C / 256GB
128C / 256GB 128C / 512GB

The scaling process is fully automated by WAP and includes:

  • EC2 instance resizing
  • Rolling service restarts (replica set mode)
  • Business impact minimization

V. Query Scan Metrics (Used for Scaling Decisions)

If the following metrics exceed thresholds, auto scaling will be suppressed.

1. SCANNED / RETURNED

  • Definition

    Number of index entries scanned vs. documents returned per unit time

  • Data Source

    totalKeysExamined from MongoDB explain() output

  • Purpose

    • Evaluate index hit ratio
    • Identify inefficient or missing indexes

2. SCANNED OBJECTS / RETURNED

  • Definition

    Number of documents scanned vs. documents returned per unit time

  • Data Source

    totalDocsExamined from MongoDB explain() output

  • Purpose

    • Detect full collection scans
    • Assist in identifying causes of abnormal CPU usage

VI. Policy Summary

Auto scaling is not a universal solution.WAP combines resource metrics, MongoDB internal behavior, and query characteristics to make safe and stable scaling decisions.

This approach avoids ineffective scaling caused by SQL issues, missing indexes, or inefficient query patterns, ensuring system stability while scaling only when it truly adds value.
