Cluster Verification

Post-Creation Cluster Validation and Checks

After a MongoDB cluster is created, it is recommended to perform a comprehensive validation from three dimensions: platform status verification, connectivity validation, and log inspection. This ensures the cluster has been delivered correctly and is ready for use.

I. Platform Status Verification

1. Cluster Status Check

  • Navigate to MongoDB → Cluster List

  • Check the overall status of the newly created cluster:

    • Init: The cluster is being created
    • Health: The cluster has been created successfully and is running normally
    • Error: An exception occurred during creation or runtime

Only when the cluster status is Health does it indicate that all initialization steps have been completed.

1770024245660

2. Node Status Check

  • Enter the cluster details page

  • Review the status of each node:

    • Node role (Primary / Secondary)
    • Instance running status
    • CPU / memory / disk utilization

Validation Points:

  • Replica Set

    • Only one Primary node
    • All other nodes are Secondary

  • Sharded Cluster

    • Config Server, Shard, and Mongos components are all in a healthy state
    • All components are online with no active alerts

II. Connectivity Validation

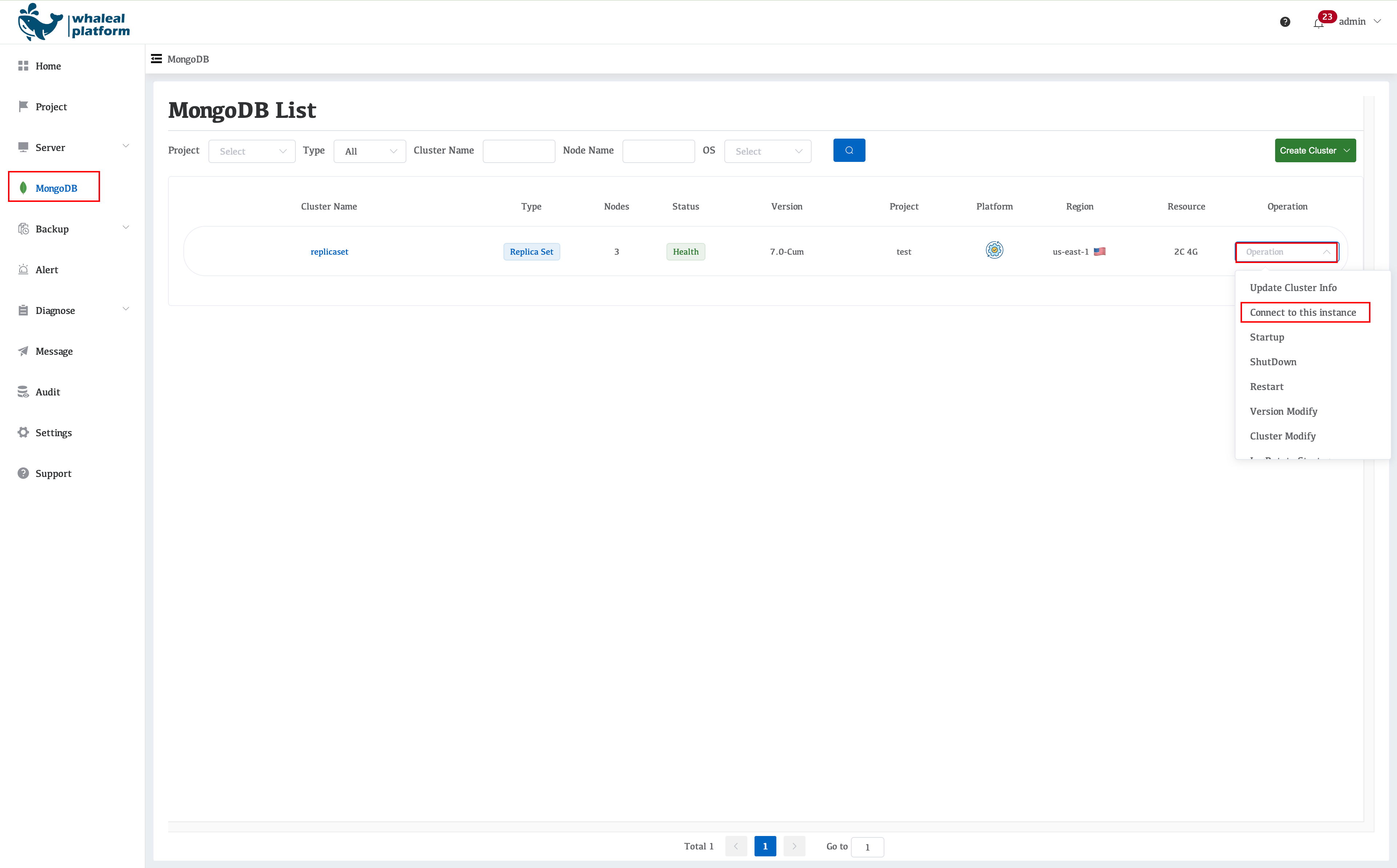

1. Retrieving Connection Information from the Platform

On the cluster details page, you can obtain MongoDB connection information, including:

  • Internal connection endpoint
  • Port
  • Authentication method
  • Username
  • Authentication database

1770023954727

2. MongoDB Connection Test

1770023954727

Use a MongoDB client to verify connectivity, for example:

mongosh "mongodb://{username}:{password}@{host}:{port}/?authSource=admin"
