Quick Start mongodb
If you use Quick Start to create mongodb, you need to add the host reference in wap in advance:Manually add Agent And upload the mongodb media package reference:MongoDB Package
Get Started
Click mongodb on the left
Click create Cluster on the right and select Quick Start
Go to Quick Start page
main issues
- Data is stored by default in /data/.
- A random port within the range 37000-37100 is used as the default service port.
- Please ensure that hosts in the project use the same version of the operating system.
- For testing and validation purposes only. For production environments, please click "Create Cluster" for standardized configuration.

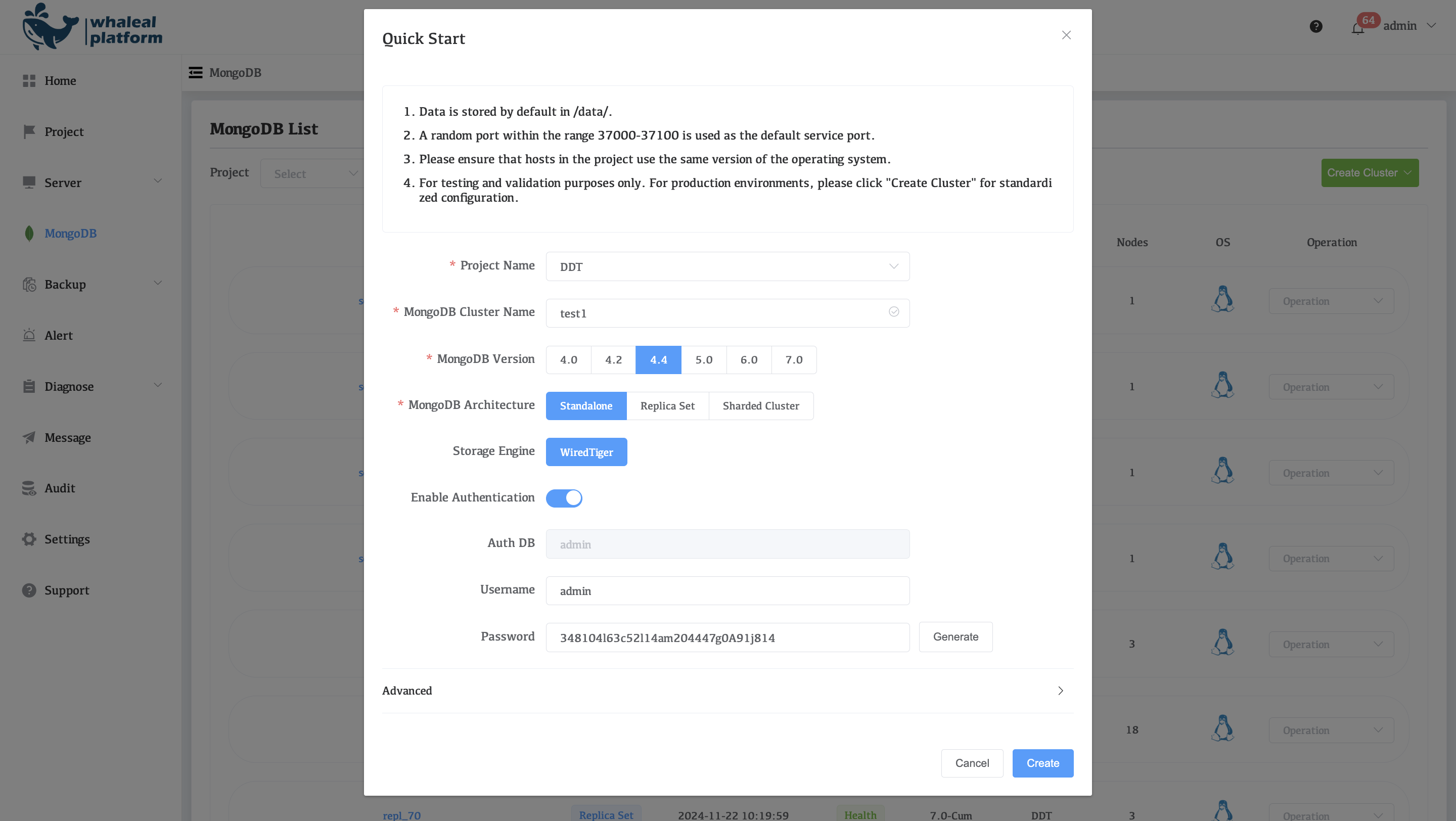

Rapid deployment of single node
configuration parameters
| Parameter Name | illustrate |
|---|---|
| Project Name | Select the project name where you need to create mongodb |
| MongoDB Cluster Name | The name that identifies the single node instance |
| MongoDB Version | Select the MongoDB version for your MongoDB deployment. |
| MongoDB Architecture | Select the type of MongoDB cluster you want to deploy |
| Storage Engine | MongoDB storage engine |
| Enable Authentication | Enable mongodb authentication |
| Auth DB | current MongoDB authentication library |
| Username | MongoDB Username |
| Password | MongoDB Password |
| Advanced | You can specify the Data Path and Port range |
After selecting, click create
Waiting for creation to complete
Replication Set Rapid Deployment
configuration parameters
| Parameter Name | illustrate |
|---|---|
| Project Name | Select the project name where you need to create mongodb |
| MongoDB Cluster Name | The name that identifies the single node instance |
| MongoDB Version | Select the MongoDB version for your MongoDB deployment. |
| MongoDB Architecture | Select the type of MongoDB cluster you want to deploy |
| Storage Engine | MongoDB storage engine |
| Enable Authentication | Enable mongodb authentication |
| Auth DB | current MongoDB authentication library |
| Username | MongoDB Username |
| Password | MongoDB Password |
| Secondary Nodes | Select the number of Secondary Nodes |
| Advanced | You can specify the Data Path and Port range |
After selecting, click create
Waiting for creation to complete

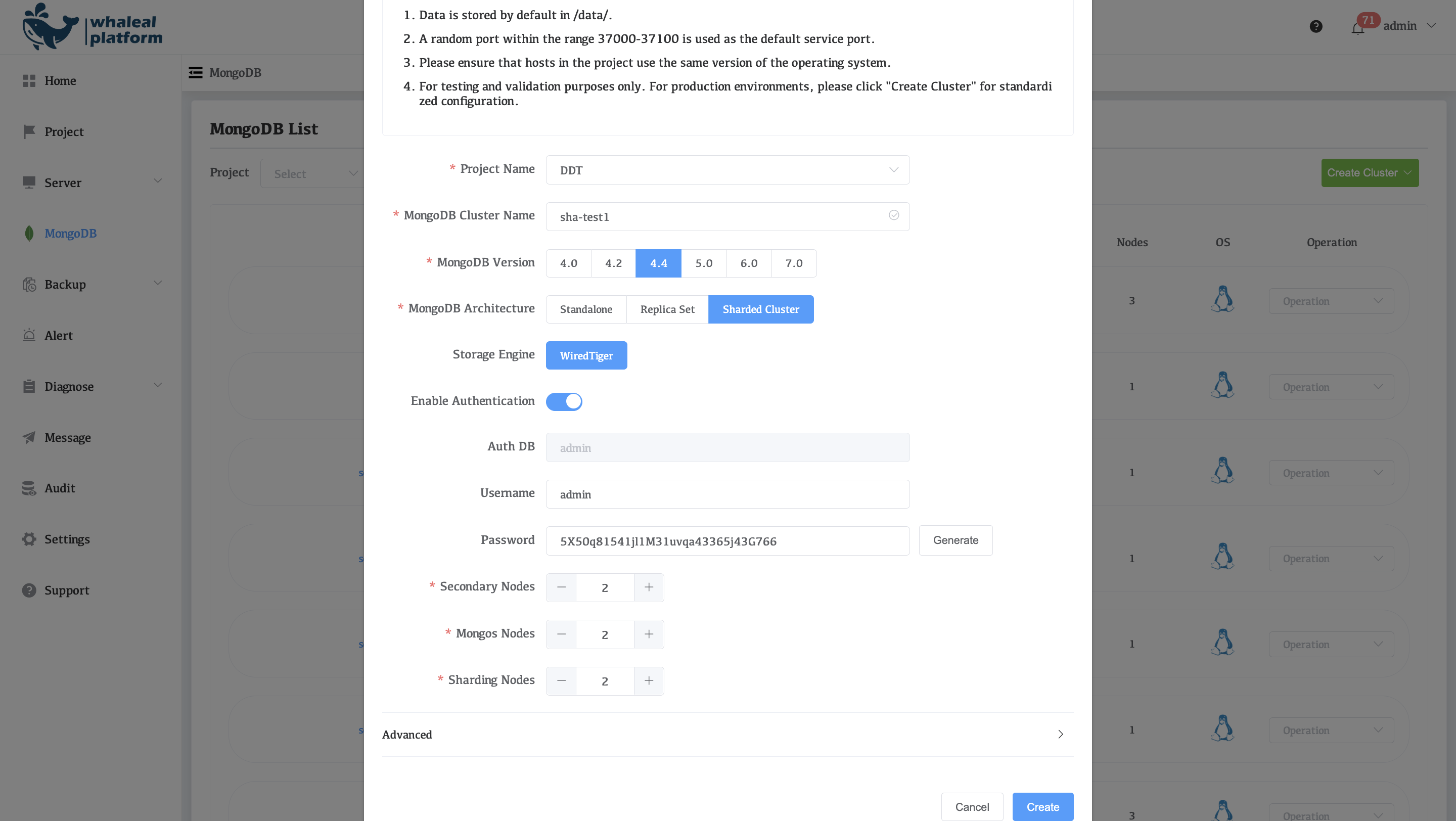

Fast deployment of sharded clusters
configuration parameters
| Parameter Name | illustrate |
|---|---|
| Project Name | Select the project name where you need to create mongodb |
| MongoDB Cluster Name | The name that identifies the single node instance |
| MongoDB Version | Select the MongoDB version for your MongoDB deployment. |
| MongoDB Architecture | Select the type of MongoDB cluster you want to deploy |
| Storage Engine | MongoDB storage engine |
| Enable Authentication | Enable mongodb authentication |
| Auth DB | current MongoDB authentication library |
| Username | MongoDB Username |
| Password | MongoDB Password |
| Secondary Nodes | Select the number of Secondary Nodes |
| Mongos Nodes | Select the number of Mongos Nodes |
| Sharding Nodes | Select the number of Sharding Nodes |
| Advanced | You can specify the Data Path and Port range |
After selecting, click create
Waiting for creation to complete
