LogVis

Before using LogVis, you need to configure S3 storage in the settings in advance

LogVis can view the slow query statistics in the logs within a certain period of time. To view the statistics, follow the steps below:

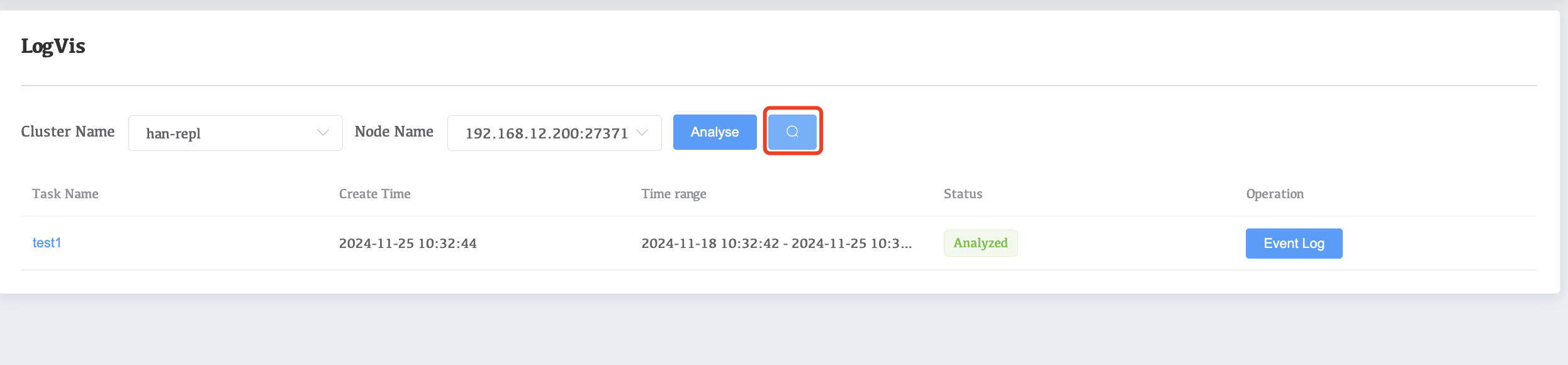

1. Select Cluster Name and Node Name, then click the Analyze button.



2. Wait for a while and click the magnifying glass icon to view the analysis results



View LogVis

Click on the task name to view details when analysis is complete

Parameter Name	illustrate
Failed Operations	Represents the number of unexpected crashes in the MongoDB cluster.
Stats by IP(Top 20)	Displays statistics of the top 20 IPs involved in slow queries, including query frequency and total response size.
Operations Stats	Statistics of operation types in slow queries, including their frequency and total duration.
Stats by Name Spaces(Top 20)	Displays information on the top 20 namespaces involved in the most slow queries, including their total response size and index stats.
Statistical Information(Top 50)	Analyzes the top 50 slow query patterns, including namespaces, operations, CPU usage, and execution times.

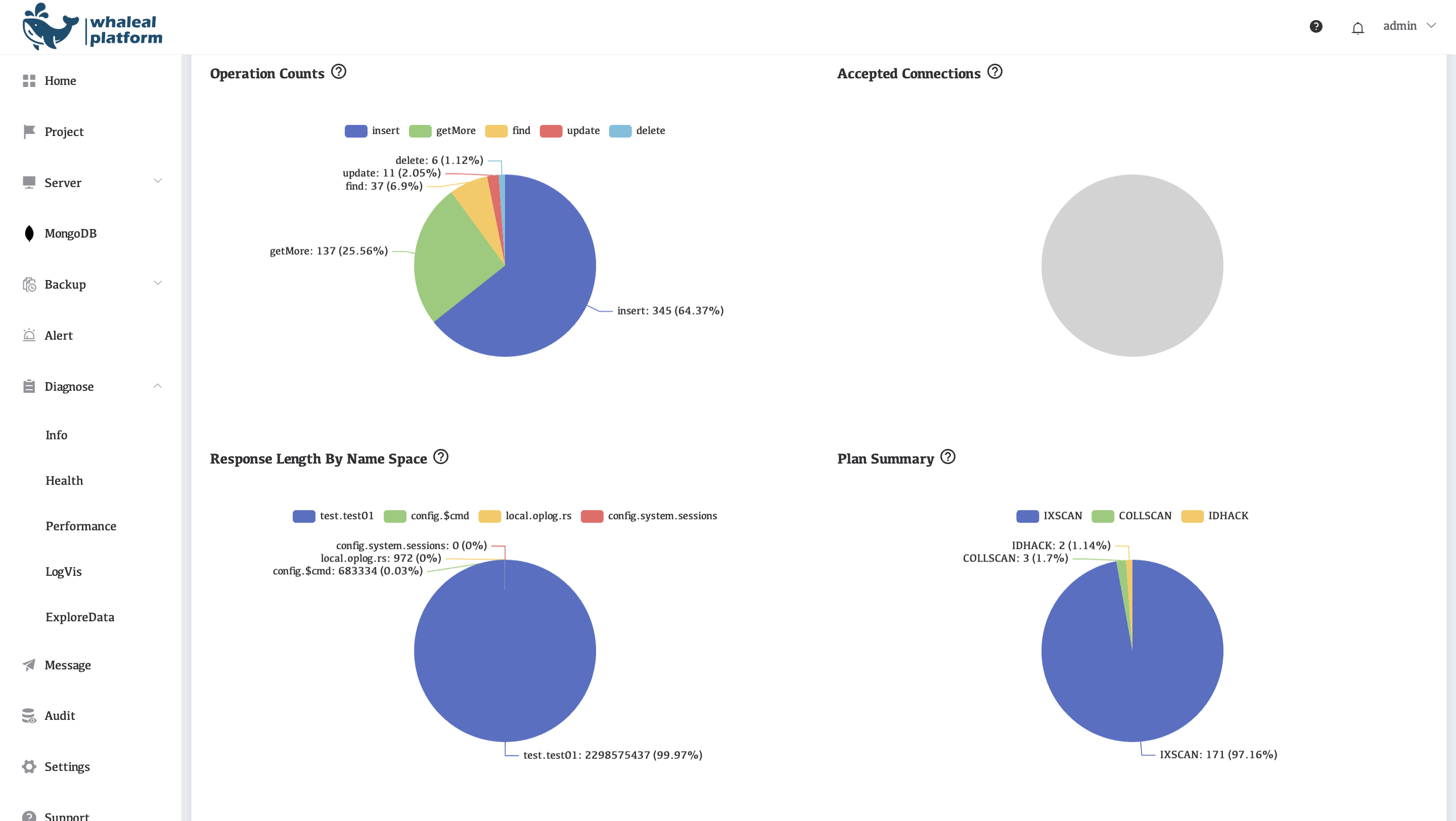

Parameter Name	illustrate
Operation Counts	Displays the total count of different operations performed in the MongoDB system.
Accepted Connections	Shows the number of accepted client connections to the MongoDB instance.
Response Length By Name Space	Represents the total response size (in bytes) for each namespace in the MongoDB system.
Plan Summary	Provides a breakdown of the number of queries executed for each plan type in MongoDB.

Parameter Name	illustrate
Average Connections	Represents the number of active client connections to the MongoDB instance.
Slow Query Information(Top 50000)	Represents the top 50,000 slowest queries recorded in MongoDB.
